Model ezSTM -Compact Scanning Tunneling Micrscopy
Scanning Tunneling Microscope is a device to scan conductive sample surfaces at the atomic scale. Quantum tunneling leads the STM theory. Conductive tip reaches to the conductive sample surface with a bias Voltage, and electrons can be tunneled between the sample and tip. As a result of this, tunnel current is occurred.
The ezSTM is a compact Scanning Tunneling Microscope System which provides excellent performance through all of these steps above. Besides its high performance, it is remarkably affordable as well. ezSTM is ideal for student laboratories, high schools, nanotechnology educations and basic researches with its compact, high stability and user-friendly design. ezSTM can be setup in 5 minutes, and after installation you are ready to explore atoms in minutes with ezSTM. Atomic resolution is obtained by ezSTM with high performance.
All ezSTM components which is controller, ezSTM scanner head, vibration isolation apparatus and laptop are included inside of the small suitcase. From the beginning, power cable, 2 USB cables and head cable are plugged and the user-friendly software is opened to start measurements. All of the software installation process are made by the ezSTM-Application Scientists of Nanomagnetics Instruments. After installation, you are ready to take measurements at an atomic resolution with the easy use of software interface.
- 1pA 10nA or 100pA 100 nA current range
- 0.1 pA current step size
- 0.5x0.5x0.2 μm or 1x1x0.5 μm (XYZ) Scanner
- Z resolution 0.5 pm
- X Y resolution 1 pm
- Constant current, constant height imaging modes
- Current Voltage, Current Distance spectroscopy
- Tip voltage ± 15 V in 300 μV steps
- Ultrasonic motors for fastest sample approach & X Y coarse sample positioning up to 5mm
- Sample reception up to 15 mm
- 2MP CMOS, LED illuminated side view video camera with manual focusing and 5X digital zooming.
The flexible design of the ezSTM allows to replace/move the scan head easily, and it provides easy usage for customers with the small footprint by an ultimate performance. Because the ezSTM takes a small space, and does not heavy, it can be transport easily.
Pt/Ir wire which is more simple and harmless than tip etching by dangerous chemicals is cut as a tip for scanning, and tip replacement is very simple which makes the ezSTM user-friendly. NanoMagnetics Instruments provides Pt/Ir wire in the ezSTM system User Kit for the customers.

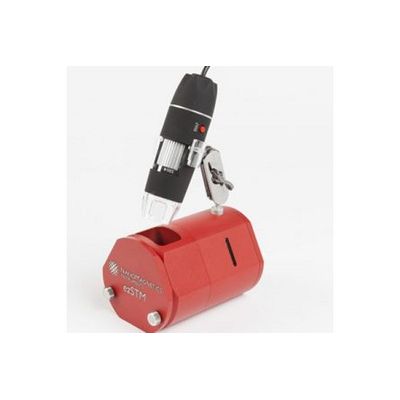

Side view camera is located on the ezSTM scanner head, and it is useful to observe the sample, tip and the movement. The movement is done by ultrasonic motors. Also, maximum scan area of the ezSTM is 1x1x0.5 um. After all steps, you will be able to scan at the atomic resolution for your samples.
- Current Range : 1 pA-10 nA or 100 pA-100 nA
- Current Step : Size 0.1 pA 0.1 Pa
- Scan Range : 0.5×0.5×0.2 µm 1x1x0.5 µm
- XY Resolution : 1 pm 1 pm
- Z Resolution : 0.5 pm 0.5 pm
- Imaging Modes : Constant current, constant height Constant current, constant height
- Spectroscopy : Current-Voltage Current-Distance
- Tip Voltage : ±15V in 300 µV steps ±15V in 300 µV steps
- Sample Approach : Ultrasonic motors Ultrasonic motors
- XY coarse sample positioning : Up to 5 mm Up to 5 mm
- Sample Thickness : Up to 15 mm Up to 15 mm
- Side View Video Camera : 2 MP CMOS, LED iluminated 2 MP CMOS, LED iluminated
- Camera : Focus and Zoom Manual Focus and 5X Digital Zooming Manual Focus and 5X Digital Zooming
- Controller : 24 Bit ADCs/DACs 24 Bit ADCs/DACs
- Digital Feedback : FPGA/DSP FPGA/DSP
- Imaging Processing : Simultaneous scan of 6 channels @ 4096×4096 pixels Simultaneous scan of 6 channels @ 4096×4096 pixels
- Connection : USB interface
- Power Requirements : 100-240, 50/60 Hz, 50 W 100-240, 50/60 Hz, 50 W
- User License : Unlimited
