Model FB4K0325 -0.3-2.5X 4K Zoom Lens

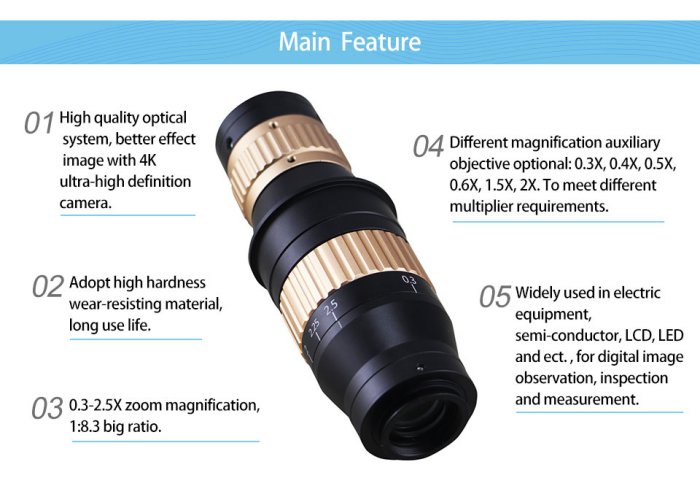

0.3-2.5X 4K monocular zoom lens. High quality optical system, better effect image with 4K ultra-high definition camera. Adopt high hardness wear-resisting material, long use life. Auxiliary objective optional: 0.3X, 0.4X, 0.5X, 0.6X, 0.75X,1.5X, 2X.

|
Model |
FB4K0325 |
|
Mag |
0.3-2.5X |
|
WD |
86mm |
|
FOV |
25.6x14.4-3.07x1.72mm(Base on 7.68x4.32mm sensor 4K camera) |
|
NA |
0.021-0.090mm |
|
Resoluition |
0.004-0.016mm |
|
Depth of field |
0.018-6.24mm |
|
Mount |
Standard C mount,C interface with a fine-tuning handwheel, after focusing each multiplier does not need to focus |
|
Install diameter |
50mm |
|
Maganification |
FOV |
Working distance |
|
0.3X |
25.6x14.4mm |
86mm |
|
0.4X |
19.2x10.8mm |
86mm |
|
0.5X |
15.4x8.64mm |
86mm |
|
0.75X |
10.2x5.8mm |
86mm |
|
1.0X |
7.7x4.3mm |
86mm |
|
1.25X |
6.1x3.5mm |
86mm |
|
1.5X |
5.1x2.9mm |
86mm |
|
1.75X |
4.4x2.5mm |
86mm |
|
2.0X |
3.8x2.2mm |
86mm |
|
2.25X |
3.4x1.9mm |
86mm |
|
2.5X |
3.1x1.7mm |
86mm |
