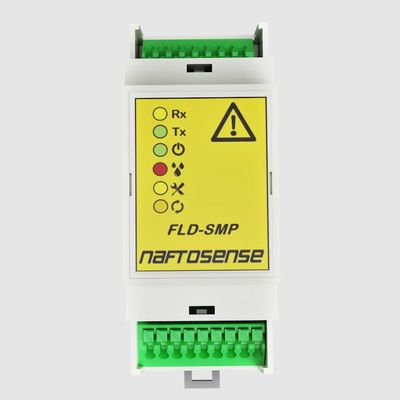

Model FLD-SMP-MB -Control Module for Panel Mount

FLD-SMP-MB is a high-performance controlling module designed for mounting in your existing or new enclosure. It was specially designed to interface with Naftosense ERBUS proprietary communications and low voltage power to related monitoring modules. FLD-SMP-MB offers convenient DIN-rail mounting in any approved enclosure. Each individual FLD-SMP-MB can be connected to 50 monitoring modules. Each monitoring module can be connected to up to 8 individual sensors not exceeding 82 ft (25 m) each. Because the ERBUS provides both power and communications you can connect monitoring modules to the proprietary bus eliminating the need of additional infrastructure. The maximum distance covered with wired layout(sensor and jumper) is more than 2 miles!
