Model Float Type -Liquid Level Measuring Device
The float type liquid level measuring device can be used not only for ballast water tanks, fuel oil tanks, draft meters, but also for measuring the liquid level of the cargo tanks, displaying temperature and steam pressure, and also issuing an alarm signal when the value exceeds the set limit. Display the condition of the cargo tank in multiple units.
Most popular related searches
liquid level monitoring system
level monitoring system
liquid level monitoring
level monitoring
ballast water tank
floating monitoring system
temperature monitoring
pressure monitoring
water tank
ballast water
- Float level measuring device can be used not only for ballast tanks, fuel tanks, draft meters, but also for measuring the liquid level in tanks, displaying temperature and steam pressure, and also issuing an alarm signal when the value exceeds the set limit The situation of the cargo tank is displayed in various units.

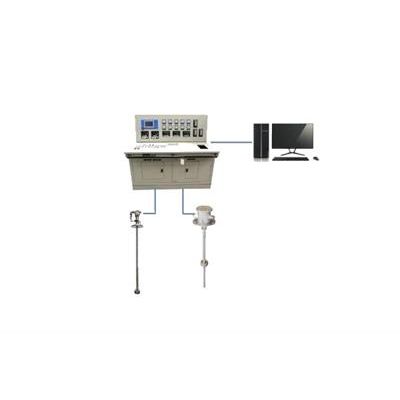

- All information measured by this unit can be completely contained in the ship-wide control system and instantly displayed on the loading computer or instrument. The sensor contains: level measurement, pressure measurement and multi-point temperature measurement (optional). Can communicate with the host computer.
- Its main feature is easy to operate and repair, because the detector`s sensor is flexible and adjustable, so it is easy to maintain and repair the crude oil ship, product oil tanker and chemical tanker. We can lift it directly by hand. Maintenance without the need for maintenance personnel to drill into the cargo tank for work.
- Power supply voltage: DC24V
- Measurement accuracy: ±0.2%FS (magnetostrictive type only)
- Measurement dead zone: 100mm
- Range: 0 to 10m, 0 to 30m
- Working environment temperature: -25°C～+80°C
- Connecting cable: Power cable: 2×2.5mm2 Signal cable: 2×1.0mm
- Type approval certificate: CCS, GL, NK2
- Simultaneous monitoring of liquid level, temperature and pressure
- Multiple signal outputs: RS485; 4 to 20 mA; resistance signal
- Simple, robust, fully sealed design
- Temperature, high pressure, high magnetic sensitivity, insensitivity to ESD
- Anti-liquid wave design, stainless steel jacket available
- High reliability, EMC design
