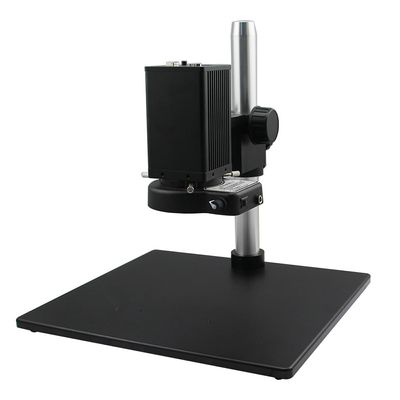

Model FM3500AF -Large FOV Auto focus Video Microscope
FM3500AF Large FOV video microscope, Built-in high-precision of optical auto-focusing system. Combined with software fast algorithm. It can real time auto focusing in the adjustable range, no need adjust focusing. Auto focus, real time keep the image clearly.

|
Model |
FM3500AF |
|
Chip structure |
HIS+ARM |
|
Operating system |
LINUX 3.10 |
|
Kernel structure |
Dual-core Cortex-A9 |
|
Frequency Speed |
1Ghz |
|
Optical size |
1/3” |
|
Resolution |
1920×1080 |
|
Frame |
60fps |
|
Working distance |
100-300mm |
|
Max. FOV |
460x240mm |
|
Magnification |
10-140X |
|
USB Mount |
Dual USB mount, can connect U disk, wireless mouse or keyboard. |
|
Operation mode |
Mouse operation |
|
Power supply |
DC 12V |
|
Working temperature |
-10? to 70? |
|
Stand |
330*300mm base size ,coarse and fine post stand |
|
Mag |
FOV(100mm WD) |
FOV(300mm WD) |
|
10X |
172x92mm |
460x240mm |
|
20X |
96x50mm |
230x130mm |
|
50X |
53x29mm |
116x60mm |
|
80X |
40x22mm |
74x40mm |
|
100X |
34x19mm |
62x34m |
|
140X |
24x14mm |
47x26mm |
