Model FM650IP -All-In-One Design Measuring Video Microscope

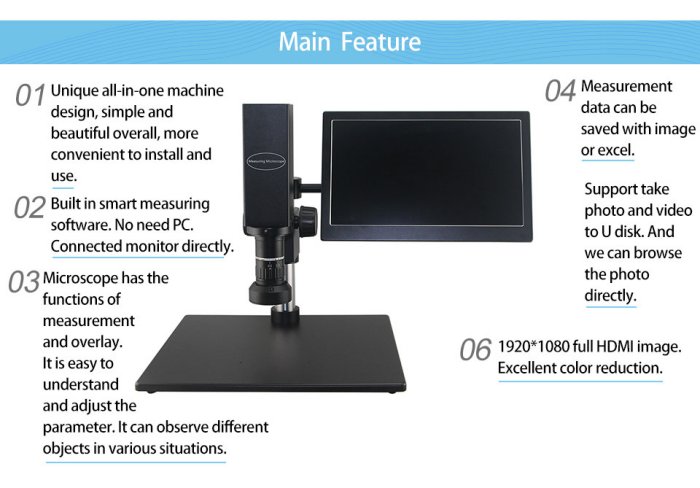

Unique all-in-one machine design,more convenient to install and use. Zoom 0.6-5X .Working distance 86mm. Support take photo and video to U disk.Measurement data can be saved with image or excel.1920*1080 full HDMI image. Excellent color reduction
|
Model |
FM650IP |
FM650IPTV05(Standard) |
|
Optical magnification |
0.6-0.5X |
0.3-2.5X(0.6-5.0X zoom body with 0.5X C mount) |
|
Total magnification |
31-260X |
15-130X |
|
FOV |
8X6-0.96X0.72mm |
16x12-1.92x1.44mm |
|
WD |
86mm |
|
|
Resolution |
1920×1080 |
|
|
Frame |
60fps |
|
|
Pixel |
2.0MP |
|
|
Chip structure |
HIS+ARM |
|
|
Operation system |
LINUX 3.10 |
|
|
Kernel structure |
Dual-kernel Cortex-A9 |
|
|
Sensor |
1/3" |
|
|
Output |
HDMI |
|
|
USB Mount |
Two USB mounts: One for mouse, One for U disk |
|
|
Focus |
Coarse focus |
|
|
Post |
φ32mm post diameter,318mm post height |
|
|
Light source |
5W LED ring light,0-100% brightness adjustable |
