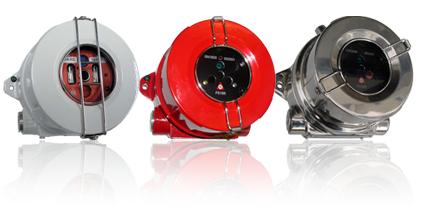

Model FS-18X -Flame Detector
Multi-Spectrum TriBand™ Fire & Flame Detector - Dual IR + Visible Bands
The FS18X is an advanced technology TriBand™ (IR/IR/Visible) Electro-Optical Flame Detector. High-speed solid-state Quantum sensors deliver fast reliable fire detection for all types of fires with the highest false event immunity. Patented software algorithms and multiple microprocessors provide detection of hydrocarbon and non-hydrocarbon fires, in all weather conditions and at all altitudes. Continuous validation diagnostics, optical integrity self testing, and the Event Log with patented FirePic™ downloading for post fire analysis combine to produce the highest reliability (SIL 2 pending) optical flame detector. A 110° field of view and selectable sensitivity means greater volumetric coverage than any other equivalent flame detector.
- IR/IR/VIS
- Infrared - Nearband
- Infrared - Wideband
- Visible light
- Detects hydrocarbon and non-hydrocarbon fires
- Detects in the presence of condensing humidity
- RS-485 ModBus & isolated 4-20 mA analog output (sink or source)
- Built-in optical "through the lens" testing for optical integrity confirmation
- False alarm immunity and solar blind
- Detects Hydrocarbon and non-Hydrocarbon fueled fires
- Wide field of view
- Adjustable detector sensitivity
