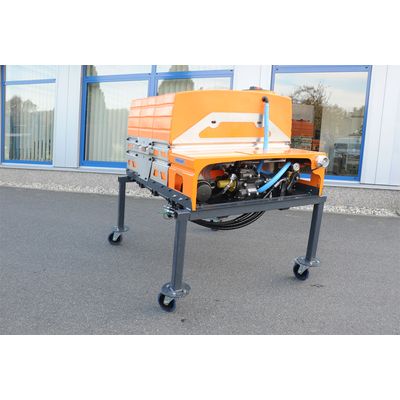

Model FTS -Tank Systems With Medium Pressure System

Tank system with 275 to 17600 liters total content. max. 100 liter / min. at max. 50 bar. Water tank system in cascade construction (baffles are generally included). Dimensions: depending on the size and type of the tank system and dimensions of the vehicle bed and payload. Tanks made of robust PE in RAL 2011 (UV and impact resistant). In addition to crane straps, the drum frame also has corresponding lashing points for. attachment according to VDI 2700 on all loading platforms. flat design with optimal utilization of the platform width. standard filling via C port. standard water suction filter.
