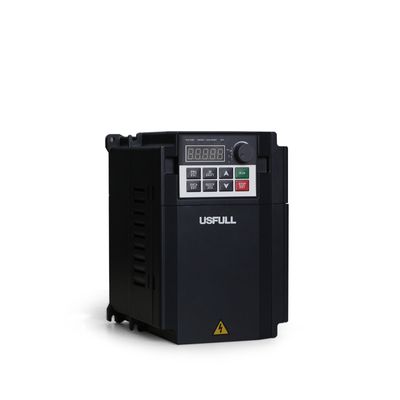

Model FU9000D -Variable Frequency Drive
USFULL FU9000D series frequency inverter is developed on new hardware platform. Application: Our FU9000D VSD/VFD variable frequency drive is fully automatic, no need to make extra setup to run it. It’s user friendly and easy for maintenance. The ac drive has many features such as save energy, increase torque, stable voltage, traverse control, control speed, protect motor, et cetera.
USFULL Variable Frequency Drive is a type of motor controller that drives an electric motor by varying the frequency and voltage supplied to the electric motor. We can all it VFD, Variable Speed Drive (VSD), Frequency Converter, AC drive, or Inverter.
USFULL Variable Frequency Drive has a simple and elegant appearance, and the book-type structure design saves installation space.
Applied in Food Processing Machine, Oil Production, Mining Equipment, Pumps, Crane, Hoist, Air Compressors and so on. We offer FU9000D General Type Inverter, FU9000MD Mini Type Inverter, FU9000H Crane & Hoist Inverter, FU9000C Air Compressor Inverter and FU9000P Water Proof Inverter.
USFULL Variable Frequency Drive has many features: intelligent setting parameters, simple PLC operation, motor protection, auto tuning function for PMSM, energy saving, stable voltage automatically, traverse control, and so on.
- Open loop V/F & SVC control
- Closed loop FVC control
- Starting torque
150% at 0.5 Hz for svc
180% at 0 Hz for FVC
- Automatic torque boost
- Slip compensation
- Flexible programmable I/O connection
- User programmable function
- Variable Dc-injection braking
- Comprehensive trip diagnostic
- Output frequency 500 Hz
- Built-in dynamic braking unit
