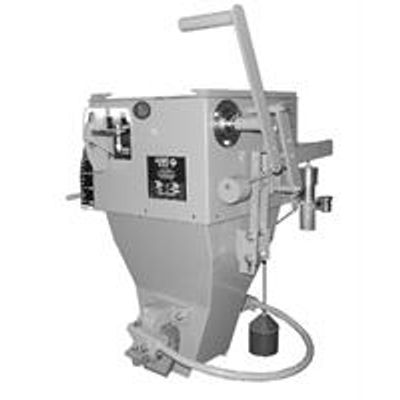

Model GB32 -Scale Bagger
GB Baggers weigh all free-flowing, non-dust materials into paper, cloth polywoven, or plastic bags with guaranteed accuracies within four ounces. Handling weighments between 20-110 pounds, they average 4-6 bags per minutes. The GB baggers have a minimum number of moving parts for maximum efficiency and lower maintenance. They are delivered pre-calibrated for your particular product and ready for immediate installation and use.
The 5 to 1 calibrated beam produces accuracy of +/- 4 oz. The scale provides tare weight function to zero out empty bag weight. Included with the scale is a full set of weights for weigh ranges from 20 lb to 115 lb. Other features include: adjustable flow control, quick release cam grip bag holders, and trigger trip screw for easy weight adjustment. Belt feeders, auger feeders, or box filling attachments can be added. The scale is available in mild steel construction, stainless contact plate, or all-stainless steel construction. Standard spout sizes are 17", 25", or 32" circumference.
Operator sets target weight by placing counter balance weights on weight rod. Place empty bag on spout and zero out using tare weight provided. Pull handle down which opens internal gate allowing product to fall through the scale into the bag. When desired weight is reached, gate will automatically close stopping product flow. Check actual weight on balance indicator, release bag, and repeat the process.
