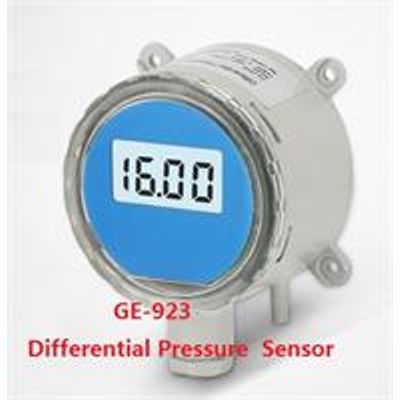

Model GE-923 -Air Differential Pressure Transmitter with LCD Screen

This GE-923 Air Differential Pressure transmitter is produced with magnetic sensing technology, pressure ranges from 0~25Pa at up to 10000KPa. Available with Unidirectional and bidirectional pressure ranges, vacuum pressure,and air velocity, with LCD display screen.

1. Medium: Air and non-combustible gases, compatible gases
2. Pressure Range: -25pa ~ 0 ~ +25pa  (min.),  -100Kpa ~ 0 ~ +10000Kpa(max.)
3. Max Pressure: 5 x Max Range.
4. Power Supply: 10-35 VDC (2-wire); 17-36 VDC,  isolated 15-26 VAC (3-wire)
5. Output: 4-20mA(2-wire), 0-5V(3-wire);0-10V(3-wire)
6. Protect Grade: IP65
7. Visual Display(optional): 2-line, 4-digit LCD
8. Working Temperature: -20C ~ 70C
