Model GRW6 -Water Cooled Power Converter

SHARE

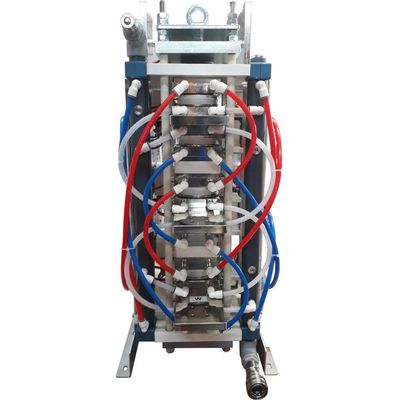

AC/DC water cooled power converter GRW6 is used in all applications that require high power with low voltage power supply, maintaining a small size. The converter can use diodes or thyristors, depending on the type of use. The power module is composed of a rack structure positioned on special supports, as shown in the figure below.

Most popular related searches
water cooling
cooling water
cooling system
cooling water system
snubber
water locating

The power modules are equipped with a water cooling system that provide energy dissipation of the semiconductor devices.
The inlet and outlet water quick connectors are located on the back of the module, as shown in the figure below:

  • Water outlet on the upper side;
  • Water inlet on the lower side.

AMBIENT CONDITION
Altitude: 2000 m. a.s.l.
Climate: Temperate
Min./Max. operating temperature: 0 ÷ 40°C
Storage temperature: -40 ÷ +70°C
Relative humidity: 10 ÷ 90% (from 0 to 40°C)



MAIN GENERAL DATA:
Converter type: Raddrizzatore a diodi Convertitore unidirezionale DC
Main supply voltage: 400V 690 ÷ 850V
Tolerance: ± 10% power supply
Rated current: 1500 ÷ 4500 Adc
Rated frequency: 50 and 60 Hz; ± 2%
Insulation voltage: 2.5 ÷ 4 kV
Protection degree: IP00
Diode/thyristor protections: RC snubber; fuses
Converter protection: Overtemperature thermoswitch
Cooling system: Water cooled
Installation type: Fixed
Dimensions: 375*845*487mm (W*D*H)
Weight: 105kg
