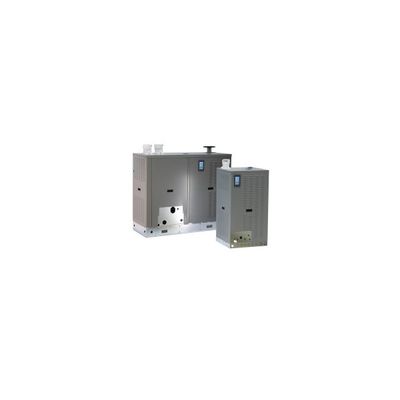

Model GTS LX Series -Humidifier
The LX Series is the only gas-fired humidifier that combines the highest efficiency on the market with ultra-low NOx in a single design.
Thermal (combustion) efficiency
94% Higher Heating Value (HHV) of fuel
103% Lower Heating Value (LHV) of fuel
The LX series offers:
- Condensing design for highest efficiency and PVC venting.
- Ultra-low NOx certified to SCAQMD 1146.2 standards.
- Smart drain technology adjusts drain intervals automatically based on water quality.
- Universal water control for use with any water type, including RO/DI water.
- Modulating output with minimum 5:1 turndown for accurate humidity control.
- Outdoor and indoor models for application flexibility.
All LX Series humidifiers feature our new touchscreen display. This new display has all the industry-leading functionality of our Vapor-logic® controller with an intuitive interface, animated graphics, and a Set-up Wizard for easier start-ups.
- High efficiency and ultra-low NOx in a single design
- Minimum 5:1 turndown ratio
- Smart drain technology automatically adjusts drain intervals
- Category IV (condensing, positive pressure) venting
- Indoor and outdoor models
- Integral drain tempering
- Fully interoperable with BACnet®, ModBus®, or LonTalk systems
- Vapor-logic® controller touchscreen display
Capacity: Steam capacities from 50 to 600 lbs/hr (23 to 272 kg/h)
Control: ±3% RH
Applications: Designed to be space-conscious and streamlined
Options: Water treatment system, climate-controlled outdoor enclosure, wall mount (LX-50 to LX-100), and support legs (LX-50 to LX-150)
