DEVINN s.r.o.

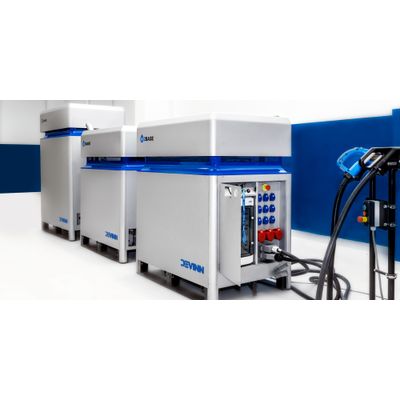

Model H2BASE -Hydrogen Energy Generator
FromDEVINN s.r.o.
A zero-emission alternative to diesel gensets: a hydrogen heat and power generator with an integrated hydrogen fuel cell. Ideal as a primary or backup power source, The fuel is compressed hydrogen in cylinders, capacity 230 kWh, 30 kW of continuous electricity, power is scalable by adding additional modules
Most popular related searches
remote monitoring
zero emissions
hydrogen generator
noise emissions
air conditioning
emissions technology
waste transport
hydrogen compressor
pallet transportation
vehicle emissions
Zero emissions
H2BASE uses a hydrogen fuel cell, which is a 100% emission-free technology. Only pure H2O is used as waste energy.
Transportable by pallet truck
For long-distance transport, a trailer behind the car is sufficient, on-site handling is possible with a pallet truck.
Remote monitoring
Thanks to remote monitoring, it is possible to remotely observe a number of operating parameters such as performance, fuel quantity, function status, etc.
The outputs are entirely up to you
The H2BASE outputs can be configured according to customer needs - AC/DC, CCS or CHAdeMO outputs are possible.
0 gCO2
EMISSIONS
The only issue of the system is clean water.
30 kW
PERFORMANCE
By adding modules it is possible to scale up to 100 kW.
230 kWh
CAPACITY
Adding the
modules makes it possible to scale indefinitely.
modules makes it possible to scale indefinitely.
60 dB
NOISE
Noise emissions roughly at the level of the air conditioning in the car.
Use: Outdoor and indoor
Output energy: Electrical and thermal
Continuous power (1x M2 module): up to 25 kW
Continuous power (4x M2 module): up to 100 kW
Outputs: 90 kW fast charging station
3x 400 V; 3x 230 V AC outputs
DC output up to 1000 V
Outlet for hot water circuit
