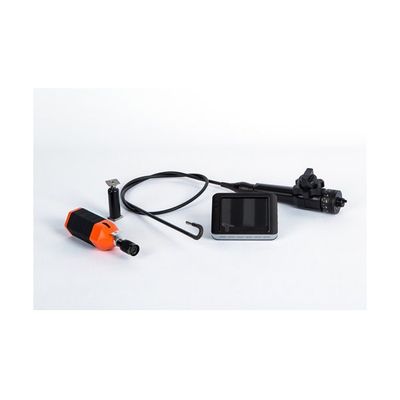

Model H5802AL -2 Way 300° Rotation Flexible Articulation Borescope Inspection Camera

• Articulating camera head adjusts up to 300 viewing angle
• Allows for easy surveying of small, hard-to-reach places
• Mini 6.2mm water-proof camera with 1m flexible tube(optional 2m,3m,4m,5m)
• Increase visibility with 3×zoom capability
• Manufactured and tested IP67 waterproof standard
• 3.5``TFT-LCD detachable/mountable monitor recording/still image capture, built-in rechargeable li-battery, Video recording capacity, supports up to 32G microSD card
• 4 white leds for night vision, adjustable brightness on lens-mounted LED light
• Lightweight, handheld design, flexible and convenient to use
• Features of Articulating Inspection Camera :
• Rechargeable li-battery in both camera handle and monitor
• Package with aluminium tool case

MODEL: H5802AL

CAMERA:

• Image Sensor: CMOS
• Diam. of Insertion Tube: 6.2mm
• Effective Pixels: 720X480(PAL)
• 720X625(NTSC)
• Field of View(FOV): 55°
• Bending Angele: 300°
• Weight: 133g
• Focus Distance: 3cm(approx)
• Depth of Field(DOF): 30cm(approx)
• Illuminative Distance: 0.5m(4LEDs)
• Water Proof: IP67
• Lowest Illumination: 0Lux
• Transmission Distance: 10m(Max.)
• Transmitting Frequency: 2468MHz
• Video Out: 1p-pv@75ohm
• Power: 5V1.5A

MONITOR:

• Curren Consumption: 260mA
• Work Time: 6 hours
• Product Dimension: 113mmX45mmX43mm (Active area)
• Screen Size: 3.5`` TFT-LCD
• Display Resolution: 320(R.G.B.)X240dot
• Video Format: NTSC /PAL
• Modulation Mode: FM
• Receive Sensitivity: -85dBm (module)
• Built-in Li-Battery Capacity: 1100MAH/3.7V
• Charge Time: 3 hours
• Work Time: 3 hours
• Consumption Current: 500MA(MAX.)
• Menory: Micro SD Card
• Picture Format: .JPG
• Video Format: .AVI
• Picture/Video Resolution: 640X480
• Frame Rate: 30Frame/S
• Operation Tempreature: 0~+45°C
• Storage Temperature: -20~+60°C
