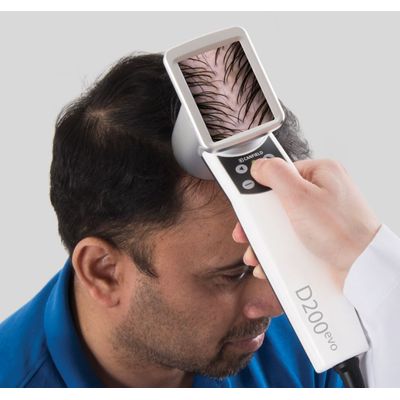

Model Hairmetrix -Fully Automated Real-Time Analysis

SHARE
The first AI-driven non-invasive hair consultation. This fully automated real-time analysis requires no hair clipping and allows for appropriate treatment plans and objective outcome monitoring to be easily communicated to your patients.
Most popular related searches
automatic analysis
microscopy
imaging microscopy
  • Fully automated unclipped analysis
  • Follicular unit vellus/terminal ratios
  • Objective outcome tracking
  • Uses latest AI algorithms
  • Easy photography by office staff
  • No special scalp or hair preparation
  • Immediately convert patients to hair services
  • No outside lab required

15-200X MAGNIFICATION

Brilliant epiluminescence microscopy. Clinical images in 5MP quality.

USER-FRIENDLY ERGONOMICS

A live image is displayed during the examination. It can be magnified, saved, analyzed, and assigned directly from the camera without a mouse or keyboard.

CUSTOMIZED PRINT REPORTS

Clear printed reports customized with your practice branding.

CANFIELD CARE® AVAILABLE

Unlimited technical support, hardware warranty, training webinars, software upgrades and ViewMyConsult access.

Specifications
What`s Included
  • VISIOMED D200EVO dermatoscope
  • Front attachment, large with glass
  • Front attachment, small with glass
  • Front attachment, polarization
Device size and weight
  • Base unit: 300 x 300 x 110 mm, 1650 g
  • Hand-held unit: handle length 150 mm; cylinder, length: 110 mm; cylinder diameter: 58 mm,500 g
  • Total weight: 2150 g
Requirements
System Power
  • 100-120V AC, 50/60 Hz, 15va or
  • 220-240V AC, 50/60 Hz, 20va
Consultation Computer Recommendation (not supplied)
  • Operating system:
    • Microsoft Windows 10 or 11 Professional or Ultimate, 64 bit
    • NOT SUPPORTED: Windows Home Edition and Windows VISTA
  • Processor: 2.2Ghz Quad Core i5, 7th Gen or higher (Intel i7 7th Gen or higher, recommended. AMD CPU`s not supported)
  • System memory (RAM): 16 GB or higher
  • Minimum 1 GB available disk space for installing application
  • 1 TB available disk space recommended for data
  • Graphics card: (If using HairMetrix only, no graphics card needed)
    • 1 GB dedicated memory minimum (2 GB Highly Recommended)
    • Dedicated nVidia or AMD cards (nVidia Highly Recommended)
    • Driver: latest available
    • 3.0 or later Open GL
  • USB Ports: 2 dedicated ports (USB 2.0)
  • Display: 1920 x 1080 (4K monitors not currently optimized)
  • Microsoft Security Essentials anti-virus software recommended
  • Wired printers (recommended for speed)
  • 1 Gbps Ethernet connection for networking - Wifi not supported
Mirror iPad App (used for ALODEX)
  • Minimum support of 802.11n or later protocol by the intra-office Wi-Fi router
  • Requires iPad capable of running the current version of iOS
Server / Network Recommendations (not supplied - minimum recommendations)
  • Windows Server 2016 64-bit and 2019 64-bit
  • Microsoft SQL Server 2017 and 2019 (Express edition is installed by default)
  • 1 Gbps wired LAN connectivity (Wi-Fi not supported)
  • 1 Terabyte HDD recommended. Space required is dependent upon patient volume, camera used, and settings.
  • RAID 1 - NOT SUPPORTED
  • Regularly scheduled backups are highly recommended
Notes
  • We do not support using a server class OS as a workstation.
  • WAN Connectivity is NOT supported.
