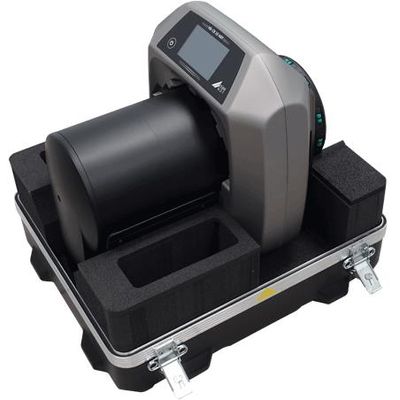

Model HD-CR 35 NDT -CR Scanner
Portable high resolution CR scanner for all NDT radiography applications - weld inspection, profile images and aerospace.
Crystal clear
Multi-focus laser adjustment for optimum SNR values and perfect image quality – film-like or better
30 µm SRb
World`s first scanner certified by BAM for a maximum SRb of 30 µm
DICONDE compliant
Fully complies to the relevant EN, ASTM and DICONDE standards
- 5-Year Guarantee (guarantee conditions)
- Experience
Technology proven in more than 100,000 units - MADE IN GERMANY
Development and production in Germany - Intuitive handling
Easy transition from film - Lightweight and rugged
With just 17,5 kg (38,5 lbs) it is the lightest full format scanner worldwide - Stand-alone function
The build in Mini-PC allows the fully autonomous operation - WiFi
The on board WiFi adapter allows to connect the device via WLAN - Powerful D-Tect software
THREE SCANNERS IN ONE
What does TreFoc Technology mean and how does it work?
TreFoc Technology is the name for the our new laser focussing technology, uniquely in systems from DÜRR NDT. With TreFoc the laser beam is adjusted perfectly to give optimal image results and the highest signal-to-noise ratio in any application.
Inside the laser tube, an iris diaphragm adjusts the laser beam diameter. Since the perfect laser beam diameter can be selected for each object and image type, optimum results for any particular application can be easily achieved.
Regardless of the application – high-resolution image or low-exposure corrosion measurement – the unique TreFoc Technology give perfect image results with the best SNR every time. The principle of changing the laser beam diameter takes into consideration the maximum resolution of the Imaging Plates available on the market.
So every Imaging Plate type can be read with a laser beam focussed specifically for that plate, thus always achieving the best image with the lowest noise.
Digital radiography has never been more intelligent!
SCAN PROCESS
After the object type has been selected, the scanner sets all scan parameters perfectly so that an optimal image result can always be expected.
ADD INFORMATION
If required, various predefined fields may be filled with additional informa-tion like kV, mA and exposure time. In order to distinguish different sites or tasks, those may be added also. If no additional information is required, this step may be skipped.
PREVIEW AND RELEASE
After the scan has taken place, the quality of the image can be checked on the built-in display and released for storing.
Laser spot size: 12.5 – 25 – 50 µm, TreFoc Technology
SRb (basic spatial resolution): 30 µm, BAM certified*
Grayscale resolution: 16 bit (65.536 gray levels)
Min./Max. imaging plate size (W x L): 2 to 35 cm x 3 to 100 cm (0.8 to 14" x 1.2 to 40")
Dimensions (H x W x D): 40 x 37 x 47 cm (15.8 x 14.6 x 18.5")
Weight: 17.5 kg (38.6 lbs)
Power supply: 100 – 240 VAC / 50 – 60 Hz < 140 W
Operating conditions: 10 to 35°C (50 to 95°F)
Noise level: < 39 dB(A)
Laser class: I (EN 60825-1: 1994-03 + A1: 2002-07 + A2: 2001-03) + CFR 1040.10
Interfaces: Ethernet, WLAN
Touchscreen: 4.3" TFT, 800 x 480 px
Internal storage: SDHC, max. 32 GB
Software: DÜRR NDT D-Tect (DICONDE compliant to ASTM 2339)
