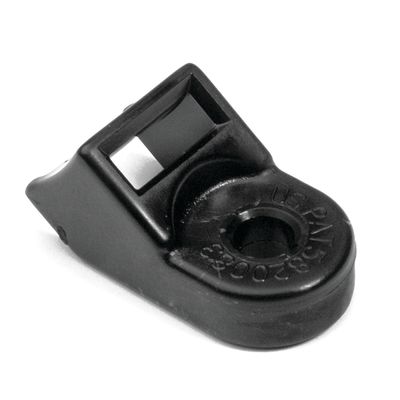

Model HDM250HIRC2 -Standard Torque Mounting Hole Tie

SHARE

Mount and tie combination makes it easy to service bundles in the field. Made from impact modified, heat stabilized, UV resistant material, ideal for heavy duty environments. Eliminates the needs for multiple sized fix diameter clamps.

Most popular related searches
RoHS compliance
uv heat stability
RoHS

Article Number: 151-00437
Type: HDM25
Color: Black (BK)
Quantity Per: bag
Product Description: These mounts contain a small tab inside the mounting hole to temporarily engage the threads, which allows assemblers to preinstall the mount on a stud before securing with a washer and a nut. For use with HellermannTyton heavy duty T120, T250, T255 and Wide Strap Cable Ties.
Short Description: Standard Torque Cable Tie Mount, Mtg Hole Dia. 0.25", Max Torque 115.0 in lbs, PA66HIRHSUV, Black, 100/pkg
Global Part Name: HDM25-PA66HIRHSUV-BK

Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Material Shortcut: PA66HIRHSUV
Flammability: UL 94 HB
Halogen Free: Yes
UV Resistant (Yes/No): Yes
Operating Temperature: -40°F to +221°F (-40°C to +105°C)
Maximum Torque (kgf-cm): 132.5
Maximum Torque (lbf-ft): 9.583
Reach Compliant (Article 33): Yes
ROHS Compliant: Yes

Length L (Imperial): 1.41

Length L (Metric): 36.3

Fixation Method: Screw Mounting and Rivet

Width W (Imperial): 0.75

Width W (Metric): 19.3

Height H (Imperial): 0.66

Height H (Metric): 16.7

Cable Tie Width Max (Imperial): 0.5

Cable Tie Width Max (Metric): 12.7

Mounting Hole Diameter D (Imperial): 0.25

Mounting Hole Diameter D (Metric): 6.2 mm

Mounting Hole Diameter D Max (Metric): 6.2

Stud Diameter (Metric): 6.2 mm

Stud Diamater (Imperial): 0.25
