Model HelixMark -A World of Choice in Silicone Tubing and Fluid Handling Products

Custom ID/OD sizing, custom labeling and certification, and a variety of packaging formats are available including bulk, spooled, and cut-to-length. Additional custom services include skiving, pad printing, bonding/gluing, punching, drilling, parylene coating, proprietary striping, and rapiopaque. Freudenberg Medical offers custom extrusions in a wide variety of tubing types including multi-lumen, intricate cross sections, co-extrusion, wire coating, profiles, rods, tapes, and formed tubing.

The quality standards you demand

HelixMark® products have been developed as a result of over 30 years of medical device manufacturing experience. We apply an ISO 13485 medical device quality system to all production and inspection processes and include material certification and lot traceability with every product. Our products meet USP Class VI biocompatibility requirements.

All HelixMark® products are manufactured in clean rooms in compliance with the requirements of the medtech and pharmaceutical industry.

The following criteria apply to all articles of this programme:

• Materials approved in accordance with USP Class VI, ISO 10993-1, FDA 21CFR 177-2600 and EP 3.1.9 or EP 3.1.9 without appearance of solution
• Exclusice utilisation of platinum-cured silicone
• Production and packaging in ISO Class 8 clean rooms
• Certified manufacturing in compliance with ISO 13485 quality standards
• Sterilisable in autoclaves, with ethylene oxide and by gamma irradiation
• Supplied with material certificate in every packaging unit
• Seamless batch traceability
• Double packed
• Off-the-shelf availability guarantees short delivery times
• Customer-specific solutions available outside the HelixMark® standard product portfolio

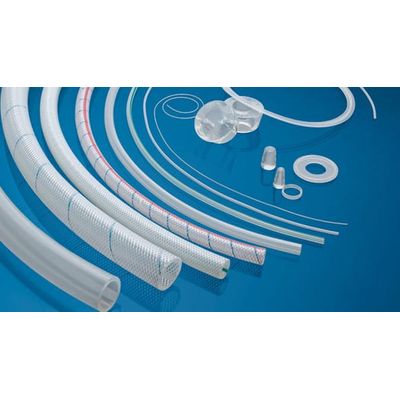

HelixMark®  Standard silicone tubing meets the needs of a broad spectrum of applications and are universally applicable for the transfer of fluids under standard requirements. The tubing is offered in two types of silicone (Dow Corning Silastic 50 Shore A and Wacker Elastosil 60 Shore A) and is individually packed in pre-cut lengths of 15 m.

Ideal for increased pressure or high temperatures - HelixMark® braided reinforced tubing is designed and manufactured especially for applications with higher pressures. Pressure-proof polyester braiding, firmly embedded between two layers of silicone, lends this tubing its particularly durability and resistense to pressure. The tubing is individually packaged in pre-cut lengths of 7.5 m.

HelixMark® Braided Reinforced Tubing can be sterilized by autoclave, ethylene oxide, or gamma radiation within the user’s validated cycles and exposure levels.

Typical hardness: 65 Shore A.

Recognize lines at a glance

HelixMark® Color Stripe Silicone Tubing is available with three choices of color striping: red, green, or white. Whether you want to recognize your lines at a glance by application, tubing size, or functional area, HelixMark® Color Stripe Tubing gives you the flexibility to create your own system.

Add nonstripe and custom colors to create as complex a system as necessary.

Typical hardness: 60 Shore A.

HelixMark® colour-striped tubings helps to maintain a clear overview in complex tubing systems and enables quick and easy identification of individual applications, sizes of functional configurations. The Tubing is available in red, green and white, individually packaged in pre-cut lengths of 15 m.

HelixMark®  close tolerance silicone tubing maintains particularly tight tolerances with regard to inner diameter and wall thickness and is subjected to stringent quality assurance measures in production. This ensure increased dosing precision in demanding applications. Biomedical/pharmaceutical-grade platinum-cured silicone tubing, manufactured with Dow Corning, provides superior flow properties. HelixMark® close tolerance silicone tubing ensures minimal dimension variation, making this tubing appropriate for the most exacting applications. Sterilize HelixMark® Close Tolerance Silicone Tubing by autoclave, ethylene oxide, or gamma radiation within validated cycles and exposure levels. The tubing is individually packaged in pre-cut lengths of 15 m.

Typical hardness: 50 Shore A.
