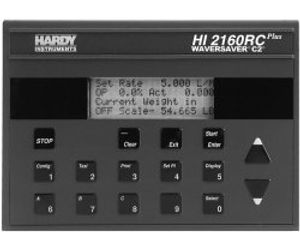

Model HI 2160RCPlus -Loss In Weight Controller

• Automatic Control Mode:
  Automatically corrects for variations in desired flow rates.
• WAVERSAVER:
  Ignores plant and process vibration for more accurate measurement of feed rates.
• Manual Control Mode:
  Use the up and down arrows to manually control the flow rate. Convert to automatic mode when proper flow rate is achieved.
• Continuous or Batch Modes:
  User selectable operating modes for continuous or batch processing.
• Automatic Refill:
  User selectable refill points to start and stop the refill process. HI and LO alarms to detect a refill failure.
• Manual Refill:
  Allows for manual refill at anytime.
• Automatic Tuning (Auto Rate Calibration):
  Provides the user with automatically calculated parameters or the user can manually enter their own derived values.
• Operation Displays:
  Single button selection of Predefined operating displays such as, Rate, Current Weight, Totalized Weight, and Batch data.
• Secure Memory Module:
  Provides for stored critical data to be transferred to a replacement HI 2160RCPLUS . Conveniently located on the rear panel, replacement takes only a few seconds. Does not require recalibration of the scale. Maximizes up time for the feed systems.
• Control Output:
  Electrically and optically isolated, user selectable 0-20 mA, 4-20 mA, 0-5 VDC, or 0-10 VDC output.
• Front Panel:
  5" x 7" Waterproof when mounted in a NEMA 4 enclosure.
• Serial Communications:
  Bi-directional serial port (RS 232) allows reading of data and downloading of feed rate instructions.
• Hardy Link Communications:
  Assigns addresses to each instrument so they can share the same Serial Chain.
• Self Test:
  User can easily troubleshoot the controller by implementing the internal self test.
• Reports:
  Automatically prepares batch performance reports.
• C2 Second Generation Calibration:
  Electronic method for calibrating a scale.
• Remote Operation:
  The HI 2160RC PLUS is fitted with a bi-directional serial port, an optional Allen Bradley I/O card or Profibus Interface, which allow for remote operation of the controller.
• Multiple Configuration Storage:
  Stores up to twelve different complete system configurations allowing fast and easy transition to a new material, auger or entire feeder.
• Two Sigma:
  The Two Sigma Test feature is used to measure the feed rate performance for any given feeder system. The Two Sigma Test can be run on demand during all feed cycles.

The prerequisite of effective feeder control is accurate measurement of the process. Hardy Instruments` exclusive WAVERSAVER technology ignores vibration and mechanical noise in feeders and the plant environment. There`s no need for mechanical contraptions to dampen vibration because WAVERSAVER intelligently deciphers true weight data from the load cell signal. All of this is done in a fraction of a second, allowing the HI 2160RCPlus`s control algorithms to be precise and responsive. With 1,000,000 counts of display resolution, the HI 2160RCPlus can monitor even minute weight changes in systems with high dead loads.

Hardy Instruments’ C2, Second Generation Calibration, feature allows you to electronically calibrate your feeding system immediately after installation, eliminating all of the problems associated with test weights. Each C2 certified load sensor contains information detailing its unique performance characteristics. The HI 2160RCPlus uses these characteristics to automatically calibrate the scale without the need for test weights, even with material placed on the scale.

A five-point Auto Rate Calibration automatically allows the HI 2160RCPlus to tune itself to the feed characteristics of the feeder and the material being fed by it. It will also display a percent deviation, if any, at all five points. This allows for a higher feed accuracy over a broader range of feed rates.

Need to change your material, an auger or the complete feeder? With the HI 2160RCPlus, once you have done your setup and calibrations, you simply store them away in its twelve dedicated, on board memory locations. When you make a change, you just retrieve the required configuration and continue your process. There is no need to manually recalibrate or reconfigure.

If the controller ever needs replacement, all twelve configurations can easily be transferred to another instrument via the rear accessible Secure Memory Module (SMM).

Today, industrial processes utilizing feeders require a high degree of accuracy and must have a way to measure that accuracy. Feeder users have had to verify their performance by providing test material to a feeder manufacturer`s test facility where under laboratory conditions a “Two Sigma” test was performed. For your convenience, Hardy Instruments has added this Two Sigma Test feature to the HI 2160RCPlus. Your system’s performance can be verified at any time under your actual production conditions by an on demand, built-in Two Sigma test routine. This feature not only saves you money but also gives you near instant results.

The HI 2160RCPlus is a powerful building block when it comes to multiple feeder systems. It can act as a master to multiple controllers or as a slave to some other process input. Lock out the keypad and let multiple HI 2160RCPlus units be controlled from a common host computer or programmable controller.

Start your process and walk away with confidence, because the HI 2160RCPlus will watch and notify you of any problems. Display prompts and “alarm” relay outputs occur with conditions of rate tolerance errors and refill failures. Significant errors can cause a shutdown condition with specific control parameters. You decide at which levels to alarm or shutdown, and then let the HI 2160RCPlus do its job. Only authorized personnel can enter parameters, start the process and clear alarms. You assign one of three different security levels to each function. All personnel can view the data, but only those with the proper code can actually alter values.

Quick to set up and easy to use, the HI 2160RCPlus is designed for the realities of the workplace with a waterproof front panel, and tactile response keys. Frequently changed parameters are readily accessible and easy to view from the 80-character backlit display.

Hardy Instruments provides a wide variety of interface options, including standard bidirectional serial and optional Allen- Bradley Remote I/O, Profibus and Analog interfaces.

• Operation Displays
  A single button selects pre-defined operating displays including rate, current weight, totalized and batch data. Backlit 80- character display is easy to see from wide angles
• Totalizer
  Keeps track of the amount of ingredient dispensed
• Remote Inputs
  Allow synchronization with other process equipment or for simplified remote control of Refill, Start, Pause, Abort, Reset Totalizer, Print, Read Remote Setpoint and Clear Alarm
• Time Units
  Seconds, minutes and hours
• Mass Units
  lb., oz., ton, kg, g, gal, ltr, mltr
• Control Output
  Electrically and optically isolated, user selectable 0-20ma, 4-20ma, 0-5vdc, or 0-10vdc output
• Front Panel
  Size 5" x 7" (124 x 178mm), waterproof (Nema 4) when panel mounted
• Serial Communications
  Bi-directional RS-232 serial port allows reading of data and downloading of feeding instructions. Additional network communications available
• Time and Date
  Self-powered time and date clock

• Remote I/O Interface
  Provides bi-directional communications to Allen-Bradley logic controllers
• Profibus I/O Interface
  Siemens certified interface providing bi-directional communications to Profibus compatible controllers
• RS-232 to RS-422 Converter
  Allows the HI 2160RCPlus to share serial bus with other instruments and extends communications distances
• Remote Set point Input
  Allows rate set point to be adjusted by an external analog input Current: 4-20 or 0-20 milliamps Voltage: 0-10 or 0-5Vdc
• Analog Output
  Transmits weight or actual rate Current: 4-20 or 0-20 milliamps Voltage: 0-10 or 0-5Vdc
• Quad Expander Box
  Remote box when used with an option expander card increases instrument option capabilities from one to four
• Remote Display
  Allows the display and keyboard to be mounted up to five feet from the instrument
• 240 VAC Operation

• Gravimetric Feeding
• Continuous and Batch Rate Control
• Master/Slave
