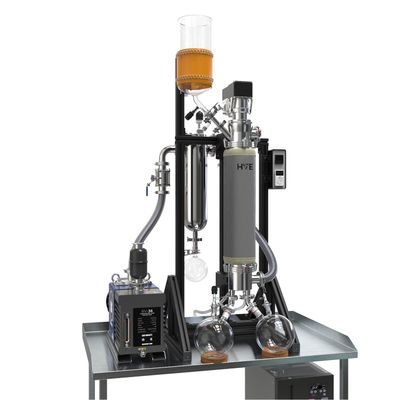

Model HiVE15 -Thin Film Distillation System

Designed for
Cannabis & Hemp

Method
 Short Path / Wiped Film

TWO MODES OF OPERATION:
Choose between volatile stripping at higher rates vs. cutting/polishing with higher quality fractions. Quick-release fittings allow the internal condenser or stripping cone to be swapped within minutes.

Short Path Thin Film Operation
(Internal Condenser Installed)

Best for medium to heavy compound stripping and polishing
Maximizes condensation efficiency via short vapor path length

External Condenser Thin Film Operation
(Stripping Cone Installed)

Best used for volatile stripping, higher vapor pressure compounds
Allows lighter compounds to exit evaporator as vapor path is extended

Warranty: 1-Year Components, 30 days for Glass, labor not included outside of the U.S.

• 0.15 m2 surface area
• 1-2 LPH final distillation feed rate;
• 2-4+ LPH volatile stripping feed rate
• 240V single phase 4800 watt heat bands
• 304L stainless steel evaporator body, optimized for efficient temperature dispersion
• High surface area stainless steel, dewar-style cold trap
• Quick swap internal condenser and stripping cone
• Small footprint (20” x 24”) customizable modular tabletop frame
• Teflon-bladed wiper design with six (6) vectored blades allows precise material flow and residence time
• Universal quick disconnect fittings allows for quick setup and breakdown
• Wiper basket is 3.75” wide by 18” long; longest 4” TFD/WFE on the market

Hive15 Upgrades

Continuous Upgrades:

Discharge Pump Kit (DPK) – adds two (2) discharge pumps to the system; coupled with the FPK makes unit continuous
Feed Pump Kit (FPK) – adds a feed pump to the system; coupled with the DPK makes unit continuous

Pressure & Speed Control:

Booster Pump Kit (BPK) – increased vacuum flow rates during stripping or high-vacuum distillation operations
Dual Pump Manifold Kit (DPMK) – adds a pump cart and manifold to quickly switch between vacuum pumps
Pressure Control Kit (PCK) – adds a precision pressure controller to accurately control high vacuum to atmospheric pressures
