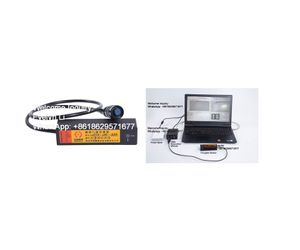

Model HSF-123 -Three-Axis Fluxgate Magnetic Sensor
General Standard Three Axis Magnetic Fluxgate Sensor is the first self-developed 3 axis magnetic fluxgate sensor by our company. The advantages are the breakthrough of the bottleneck for enhancement of frequency response of the magnetic fluxgate sensor. The responding band width could reach DC~1KHz. At the same time, it possesses good linearity, sensitivity and noise indexes.
The resolution could reach 0.1nT, and it could measure weak magnetic field with high accuracy and resolution. This product breaks the monopoly of import products in China market, which has become a significant breakthrough in domestic magnetic fluxgate sensor industry. Upon this basis, our company developed various types of three axis fluxgate for different utilizing fields.
- Wide frequency band;
- Low noise;
- High sensibility;
- Good linearity;
- Small size;
- Low power consumption.
- Field magnetic measurement;
- Aerospace magnetic measurement;
- Target detection;
- Weapon detection;
- Remanence detection.
Product Overview
Fluxgate magnetic sensor measures the magnetic field value by using the nonlinear relationship between the magnetic induction intensity and the measured magnetic field intensity of high permeability magnetic core under the saturation excitation of alternating magnetic field.
The product can measure static magnetic field and alternating magnetic field with high precision, and can measure three perpendicular magnetic field components at most at the same time. It has the characteristics of high resolution, good linearity, wide frequency response and low noise. It is especially suitable for vector measurement of weak magnetic field and high resolution measurement of magnetic field, such as geomagnetic measurement, geological exploration, material nondestructive testing and space magnetic field measurement. This product adopts waterproof design, and can be used in underwater and outdoor environment.
1. Technical Parameters
Model:HSF-123-1H3-AAA
Axis: 3
Range: ±70µT
Output voltage: ±10V
Bandwidth: DC～1KHz（-3dB）
Linearity: ≤0.01% FS
Mechanical orthogonality: ≤±0.2°
Time domain noise: ≤0.1nT @0.1S
Frequency domain noise: ≤7-10pT/rms√Hz@1Hz
Working voltage: ±12～±15VDC
Power consumption: ≤0.45W
Working voltage: ±12～±15VDC
Connection: 7-core aviation connector
Water proof joint: IP68
Size: 30×30×120mm
2. Product Features
Ø Good linearity
Ø Small size
Ø High precision
Ø Wide bandwidth
Ø Low power consumption
Ø Strong anti overload ability
