Model HSF-243 -Low Cost Fluxgate Magnetic Sensor

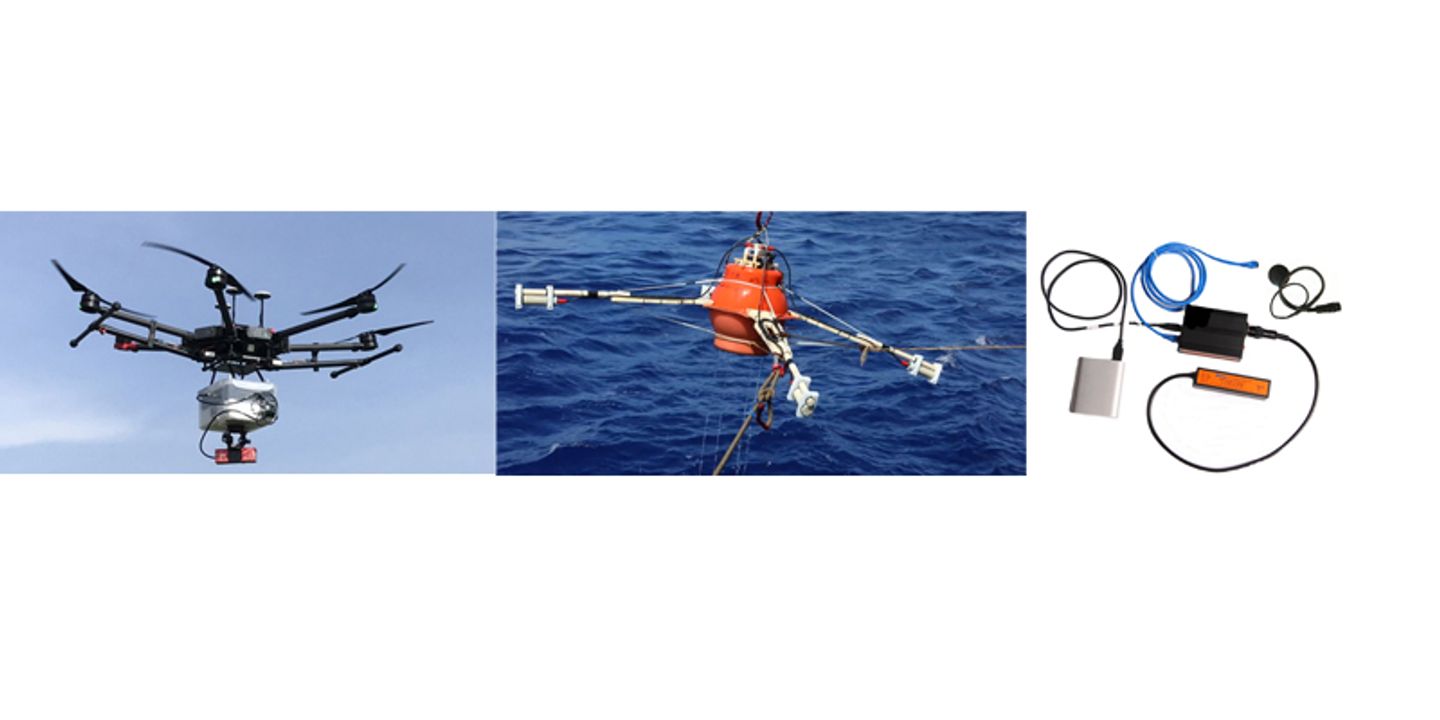

Fluxgate magnetic sensor measures the magnetic field value by using the nonlinear relationship between the magnetic induction intensity and the measured magnetic field intensity of high permeability magnetic core under the saturation excitation of alternating magnetic field. The product can measure static magnetic field and alternating magnetic field with high precision, and can measure three perpendicular magnetic field components at most at the same time. It has the characteristics of high resolution, good linearity, wide frequency response and low noise. It is especially suitable for vector measurement of weak magnetic field and high resolution measurement of magnetic field, such as geomagnetic measurement, geological exploration, material nondestructive testing and space magnetic field measurement. This product adopts waterproof design, and can be used in underwater and outdoor environment.Most popular related searches
magnetic sensor
magnetic field monitoring
field monitoring
geological exploration
non-destructive testing
non-destructive material testing
geological material
material testing
waterproofing
Model:HSF-243-2H3-AAA
Axis: 3
Range: ±300µT
Output voltage: ±10V
Bandwidth: DC～1KHz（-3dB）
Mechanical orthogonality: ≤0.2 degree
Linearity: ≤0.01% FS
Time domain noise: ≤1nT @0.1S
Frequency domain noise: ≤20-30pT/rms√Hz@1Hz
Working voltage: ±12～±15VDC
Power consumption: ≤0.45W
Working voltage: ±12～±15VDC
Connection: 7-core aviation connector
Water proof joint
IP68
Size
30×30×120mm
Ø Good linearity
Ø Small size
Ø High precision
Ø Wide bandwidth
Ø Low power consumption
Ø Strong anti overload ability
