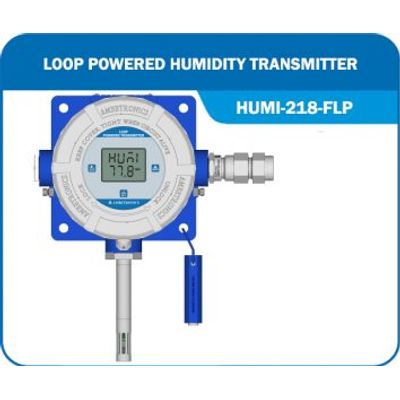

Model HUMI-218: -Loop Powered Humidity Transmitter

FromAmbetronics Engineers Pvt. Ltd.

SHARE

The Loop powered Humidity Transmitters HUMI-218 are microprocessor based programmable transmitters which are used for recording of humidity values. Highly accurate Digital technology sensor gives fast and reliable output. Relative Humidity range is 0 to 100% RH with accuracy of ±2% RH. Long term stable output for Humidity. Digital Display of Humidity with its Unit. Standard 4-20 mA signal output with configurable range. Easy handling & programming with 3 keys for WP models. Non- intrusive programming for flameproof models using Magnetic Wand. Software calibration for Humidity. Compact size, can be easily installed.

Most popular related searches

humidity transmitter

energy management system

indoor air quality

building control

building indoor air quality

indoor air quality control

building management system

General:
Detection Method: Advance CMOS Sensor Technology.
Range/Resolution: For Relative Humidity 0 to 100%RH with 0.1 Resolution
Display: 2-Line, 4×2 LCD Display
Control Action: Two independent Alarm set points for indication purpose.
Setting: By 3 keys on front panel for WP model By using Magnetic Wand for flameproof mode Accuracy & Performance
Accuracy & Performance:
Accuracy: ± 2 % RH
RTC: ± 60 seconds per month
Sampling Interval: 3 seconds
Electrical:
Supply voltage: 18 to 36 VDC; Typically 24VDC
Power consumption: Less than 0.6 Watts
Cable: 3 wires (1.5 mm²) flexible or armoured shielded cable.
Output Signal:
Standard: Loop 4-20mA current output with configurable range selection.
Load resistance: 680 ohm at 24 VDC.

Environmental:
Operating Temp.: -15 to +55°C
Accessories:
CE certified 24 VDC power supply.
Flameproof Housing:
Protection class: IP-66
Cabinet material: Cast aluminium alloy, LM-6
Cable entry: Double compression cable gland (EX-proof M20 X 1.5,½ “NPT &¾ “ ET-type
Dimension: 255mm(H) with sensor holder X 230mm(W) with stopper plug &Cable gland X 125 mm(D)
Mounting: Wall / Stand / Pipe
Weight: Approximately 2.53kg
Weatherproof Housing:
Protection class: IP-65
Cabinet material: Polycarbonate ,Grey Colour
Cable entry: Thermoplastic cable gland (IP-68)
Dimension: 215mm(H) with sensor holder ×100 mm(W)with stopper plug & cable gland ×80 mm(D)
Mounting: Wall Mounting/ Stand Mounting
Weight: Approximately 300grams

Clean Rooms
Swimming Pool
Hospitals/ Labs
Enthalpy control
Museums / Archives

Refrigeration Control
Indoor Air Quality ( IAQ )
HAVC /Buildings Control
Energy Management System (EMS)
