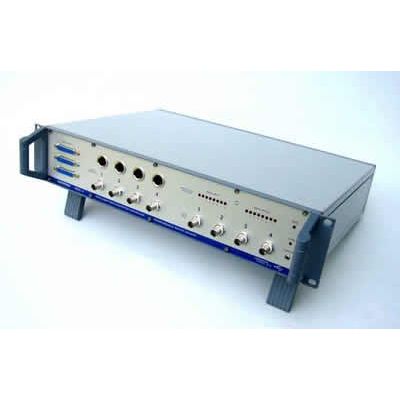

Model IDAC-4 -4-Channel USB Acquisition Controller

4-channel amplifier / data-acquisition system for the Universal Serial Bus (USB). For use with any PC (and portables) with USB port. Real-time on screen display of all signals before and during recording. Fully software programmable: Gain, Offset, Filters, Command inputs, etc. 50/60 Hz filter and zero offset control; special EAG filter. Sampling rate (1/s – 100k/s) adjustable for each channel individually. Powered inputs for active sensors and headstages (Probes). Voice comments can be recorded with data. All inputs and outputs galvanically isolated. DIRECT OUTPUTS for up to 8 external solenoids (valves) and actuators. DIRECT OUTPUTS for 2 proportional actuators (lights, flow controllers, motors, etc.). Programmable time sequence of actuator (solenoids and motors) outputs. Graphical time sequence actuator control program. Actuator sequence runs simultaneously with signal acquisition.
