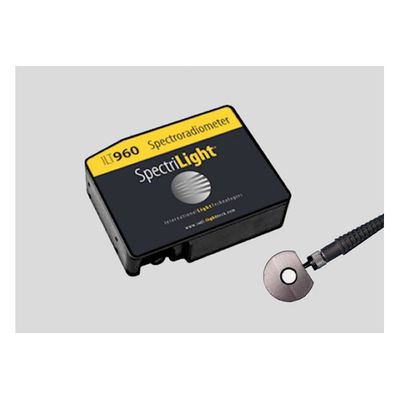

Model ILT960UVLS-RAA4 -Spectroradiometer
The ILT960-UVLS is a Low Stray Light version of the ILT960-UV. The UVLS Stray light is reduced from Lessthan.2% to Lessthan.1%. The UVLS was originally designed for testing light filtration in clean room applications assuring no UV is emitted in the storage areas where UV light sensitive products are kept or used during manufacturing. The ILT960UVLS-RAA includes ILT’s special zeroing filter to reduce stray light and noise, allowing a more accurate measurement of “no light”. The ILT96UVLS-RAA4 is also an excellent choice for testing pure light in the UV/Far UV such as UVC LED, LP and Amalgam mercury lamps as well as for testing UV sources used for disinfection and UV curing. All systems come standard with SpectrILight III software, 1 meter long fiber, RAA4 right angle input optic, tripod, hard storage case, and NIST traceable, ISO1025 accredited calibration with certification and data files.
- Model # : ILT960UVLS-RAA4
- Detector : CMOS Linear Sensor
- Focal Length : 60 mm
- Wavelength Range : 181-500 nm
- Slit : 50 um
- Resolution : <=.9 nm
- Optical Design : Symmetrical Czerny-Tuner
- SNR : 330:01:00
- Dynamic Range : 3450
- Integration Time : 0.2 ms - 1 min
- Stray Light : <.1%
- Wavelength Accuracy : +/- .21 nm
- Dynamic Dark Correction : Yes
- Non-Linearity Calibration : Yes
- Wavelength Calibration : Yes
- Trigger Compatible : Yes
- Synchronization Compatible : Yes
- ADC : 16 Bits, 2.5 MHz
- Data Transfer Speed :
- Operating Temp : 0-50 Deg C
- Interface : USB 2.0 UART
- Calibration : NIST Traceable/ISO17025 Accredited
- Dimensions (mm) HxWxL : 35.4 x 86 x 110
- Power : 300 mA@5VDC (supply voltage 4.75-5.25)
- Input Optic : RAA4 right angle adapter/diffuser (.27" dia) with mini integrating sphere .61 dia x .44" tall.
