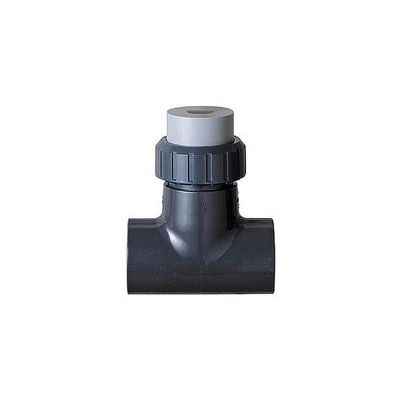

Model InFlow751 -For Mounting Liquid-Electrolyte pH-Sensors
InFlow 751 flow-through housings serve for the direct fitting of METTLER TOLEDO electrodes and sensors for the measurement of pH, ORP, dissolved oxygen, conductivity and turbidity, particularly in the field of industrial wastewater treatment.
The housings protect electrodes/sensors against mechanical damage.
InFlow751 (for mounting Liquid-Electrolyte pH-Sensors)
Specifications - InFlow751 (for mounting Liquid-Electrolyte pH-Sensors)
Temperature range: PVC: 0...60 °C (32...140 °F)
PVDF: 0...100 °C (32...212 °F)
Pressure range (bar/psi): PVC: 1 bar/60 °C (14.5 psi /140 °F); 4 bar/45 °C (58 psi / 113 °F)
PVDF: 1 bar/100 °C (14.5 psi/ 212 °F), 4 bar/75 °C (58 psi / 167 °F)
Wetted parts material: PVC or PVDF
Housing body: PVC or PVDF
O-ring material: Viton®-FDA
Adaption (diameter tube): d32DN25, d50DN40, d63DN50
Material Number(s): 25673
Trade Name: InFlow751,InFlow 751,In flow,751,housing
VITON is a registered trademark of E. I. Du Pont de Nemours and Company Corporation
Features and Benefits
- Mounted in-line in pipes, made of PVC or PVDF.
