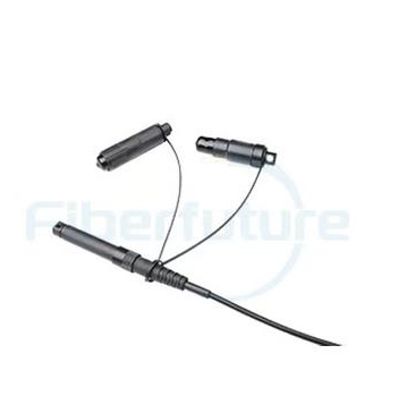

Model IP68 -TW (SC/APC) -Waterproof Connectors PC Housing Cable Assemblies

SHARE

FIBERFUTURE TW cable assemblies offer a cost-effective and efficient method for deploying optical fiber in outside plant distribution networks, significantly faster than traditional field installations. These assemblies feature a simple, one-step connection system combining push-pull insertion and a nut-style mechanical latch for quick installation. They provide good performance when mated with Optitap and Mini (SC/APC) adapters and are suitable for armored or non-armored cables.

Most popular related searches
  • Remote Radio Units (RRU/RRH)
  • FTTA, FTTH equipment
  • Other outdoor systems
  • Item: Parameter
  • Insertion Loss: ≤0.3 dB
  • Return Loss: Min. 60 dB
  • Repeatability: ≤0.2 dB
  • Interchangeability: ≤0.2 dB
  • Durability: 1000 Cycles
  • Operating Temperature: -40 °C ~ +85 °C
  • Storage Temperature: -40 °C ~ +85 °C
  • Installation Temperature: -40 °C ~ +85 °C
  • Waterproofing Grade: IP68 (1M, 1 hour)
  • Cable Diameter Range: ∅2.0mm - ∅5.0mm; 2x3mm Butterfly; 2x5mm Butterfly; 4x7mm Flat
  • Housing Material: PC
  • Boot Material: TPV
