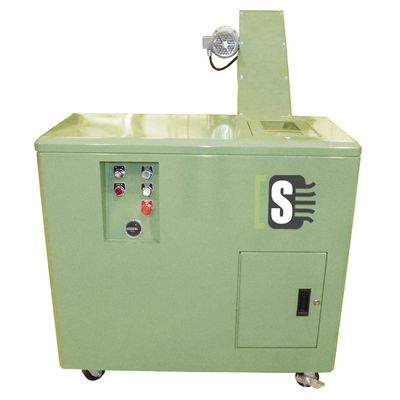

Model IS-HDS150 -E-Scrap Shredder

• Quiet (77 dba under load)
• Compact
• Portable (on casters); can be placed in trucks for mobile shredding
• Lighted viewing window
• On/off key
• Hour meter
• Infeed slot: 5"W x 2"H
• Largest infeed chute opening @ 17"L x 11"W x 12"H
• One year warranty on parts
• Discharge bin Option 1 - 17"L x 11"W x 12"H
• Discharge bin - Option 2: 18"L x 9"W x 13"H

• Backlit laser burned logos
• Discharge chute
• Fork pockets for lifting
• Customized colors

• 120v only available with 1.5" shred width; requires dedicated 20 am circuit; reduces throughput by 10%
• 3/4" shred width requires 3 phase power for longer life for motors and breakers

Description: Fixed Cut, on casters

• InFeed Chute: 5"W x 2"H
• Horsepower: 1.5
• Output: Discharge bin or conveyor
• Voltage: 120/208/230/460v; 3 phase standard
• Voltage Optional Upgrade: 120/208/230/460v; 1 or 3 phase
• Shred Width: 3/4" or 1 1/2" Optional Upgrade

Capacity

• Standard Drives per Hour: up to 100 (Optional upgrade - up to 200)
• Server Drives per Hour: up to 50 (Optional upgrade - up to 100)

Machine Dimensions

• Height: 44"
• Width: 21"
• Length: 45"
• Weight: 1,400 lbs (optional 1,300 lbs on Upgrade)

Shipping Dimensions

• Crate Dimensions: 48" x 46" x 55" H
• Freight Class: 60
• Weight: 1,300 lbs
