Model iSGM 3500 -Cutting Machines
FromESAB

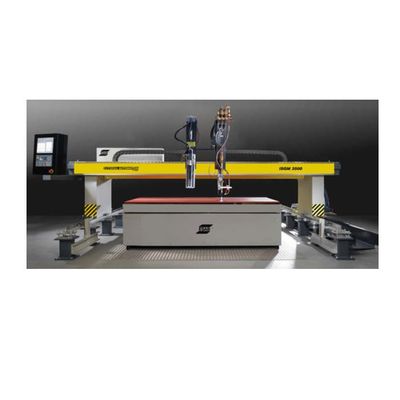

The iSGM is a rugged 3-axis heavy-duty gantry design for smooth, accurate motion, delivering high quality cutting performance. With high speed AC drives and a high speed plasma lifter, you can achieve higher productivity and high quality plasma cutting. Equipped with one plasma and one oxy-fuel torch, the iSGM can cut a wide range of materials. The iSGM comes equipped with ESAB’s iCNC Performance controller, with integrated ProMotion Nest software and Cut Cost Calculator.
Most popular related searches
- Rapid cut-to-cut cycle times with High Speed Plasma lifter with in-built laser pointer for quick tool positioning, high rapid machine speed, high vertical lifter speed & quick arc initiation
- Available with either 120 Amp or 200 Amp air-plasma systems, or 200, 300, or 400 amp dual-gas systems
- Equipped with 1 oxy-fuel torch for cutting mild steel up to 150 mm thick (edge starting)
- Cut up to 2700 mm wide, and up to 13000 mm long
- Industrial and General Fabrication
- Railcars
- Large Series Fabricated Objects
- Mobile Equipment
- Ship and Offshore Yards
- Structural Steel Fabrication
- Marine and Offshore
- Ship/Barge Building
- Steel Cutting Centres
- Windtower
- Heavy Fabrication
- Tank and Vessel Fabrication
- Power Generation
- Energy
- Metal Beam Fabrication
- Heavy Equipment
- Pressure Vessels
- Gas Cutting
- Line Marking
- Oxy-Fuel Cutting
- Plasma Cutting
- Plasma Marking
Machine Width: 4625 mm
Speed Range: 12000 mm/min
Cutting Width: Max. 2700 mm
Cutting Length: 6300 / 13000 * mm
