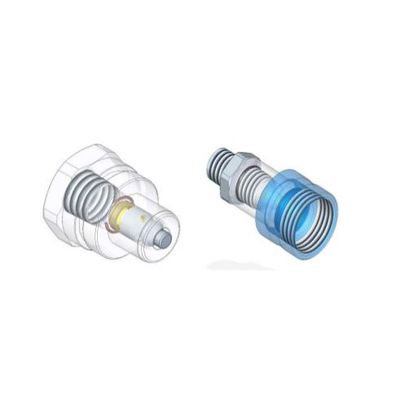

Model ISO-14540 -Screw Coupling Poppet Type

Features: Connection System: By screwing togetherthe two parts, Disconnection System: By unscrewing the two parts, Shut-off System: Poppet Valve, Connectable: Under Residual Pressure, Materials, Body: Carbon Steel-EN1A/EN8DM, Springs: Spring Steel as per !S: 4454 Grade II, Balls: AISI E-52100 Grade 100, Seals: NBR (Nitrile) Temperature Range -30° to 100°C, Backup Ring:PTFE, Surface Treatment: Zinc Plating with Cr III based Passivation,
