International Standard Valve, Inc.

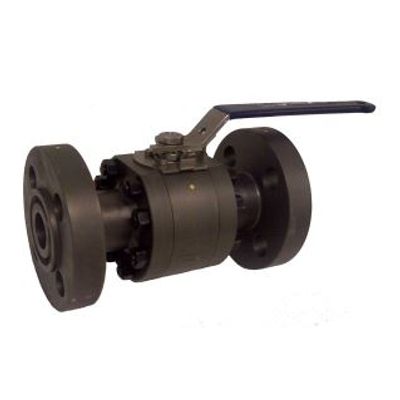

Model ISV Series BF1E -Floating Type Ball Valve
Three piece bolted body design, forged construction floating type ball valve. API 6D, API 608 design. Flanged or butt-weld end.
Most popular related searches
- Sizes: 1/2″ – 2″
- Pressure Range: ASME Class 600 & 1500
- Port: Full Port (2″ reduced)
- Body Materials: A105, LF2, F316ss, F51ss
- Trim Materials: 316SS, 17-4ph, x19 or F51
- Seat Materials: PEEK, Nylon, RPTFE or TFM
- Seal Materials: Viton+graphite, HNBR+graphite
- End Configurations: flanged or butt-weld ends
- Operator: Lever
- Locking Device: Standard
- Design Standard: API 608, API 6D, ASME B16.34
- Pressure Test to API 598 or API 6D
- Conformance Standards: API 607 fire safe, ASME B16.5,
- B16.10, B16.34, NACE compliant
