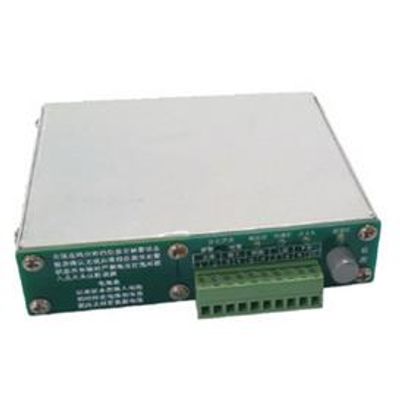

Model JR09 -Control Box
JR09 is specifically designed for nano particles fre suppression systems. II employs an Independent Lithium-Ion battery which consumes zero power when at standby status. It avoids being disturbed from voltage fluctuations and electromagnetic interference, ensuring the reliability as well as stabily of the device operation. It uses a storage circuit with a boost converter to ensure the successful actuation of the system. II can not only be used with convenlbnalgasfire suppression controllers, but also can be used with Inear heat cable, JR11 and manual control system as an ri dependent detection & control unit the JR09 makes the linked ignllon of multl fre suppression devices reaization easily, and unlmited cascade suppression system is achievable. There are multiple indicator ights on the panel for battery level, igniter circu* status and Hv circuit. Non-polar circuit is adopted lor al connection terminals to prevent any wiring problems.
This device can not only be used with conventional gas lire suppression systems, but alsocan be used wtth inear heat cable. JR11 and manual control system as an independent detection & control unit. JR09 makes the linked ignikm of muki (re suppression devices reaization easily, and unlimited cascade suppression system is achievable.
Operation Instructions:
For one unit: wiring as per instructions on fronl and back panels of
JR09; lermnals (3.4) under "24v" shall be connected to the controller outpul socket; heat sensKwe cable and manual switch cable shall be connected to terminals (5,6) under "Detection" ; controller shall be connected to terminals (1,2) under `Feedback` . Place the alarm to "alarmoo" (versus "alarmofr );press "Test" locheckallindicator Ights work property` Th© actuation box will tften be under "standby" status.
Linkage function
Either used alone or in cascade combination (Stgnate can only be transmitted from upstream units to downstream unls.), Inked ignition (Al fire suppression devices will be activated if anyone of them gel triggered)
