ROSS Companies | Automatic Valve

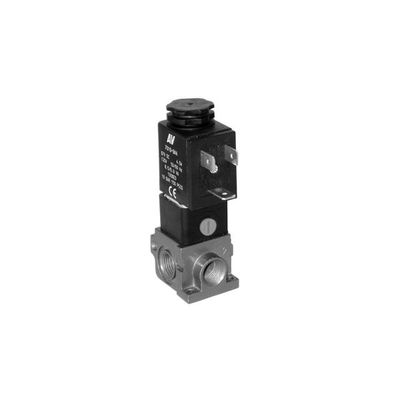

Model K02-004 -Direct Operated Solenoid Valves
Single 3/2 with spring return. 1/8” & ¼” port options. AC & DC solenoid coil options. Weather-Proof options are IP65 rated. Explosion-Proof options are CSA & FM approved and ATEX Compliant.
Most popular related searches
- Valve Series: K02
- Actuation: Electrical
- Port Size: 1/8"
- Body Type: Base Mount
- Return Type: Spring Return
- Construction: Poppet
- Flow: 0.1 Cv (100 l/min)
- Ambient Temperature: -18 to 50 C (0 to 123 F)
- Operating Pressure: Vacuum to 150 psig (1.0 to 10.3 l/min)
- Seal Material: Buna-N
- Port Thread: NPT
- Manual Override: Push Non-Locking
- Application: Standard
- Body Material: Aluminum
- Valve Function: Single Direct Solenoid 3/2 Normally Closed
