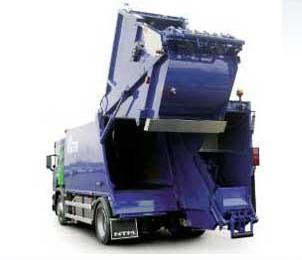

Model KGLS-2B -Multi-Chambers-Loaders

• Binlift (hydraulic levers on both sides)
• Pneumatic bin catcher bar
• Control buttons on both sides
• Proportionally controlled hydraulic levers for the bin lift,  the carriage plate and the packer plate
• Automatic work cycle
• High speed compaction
• Hose break valves for raised hoppers
• Hopper clearance when raised
• Automatic r.p.m. regulation
• Amber beacons
• Vehicle work lights
• Side under run protection
• Access door with interlock on both sides
• Dustpan and brush with holder
• Units are sandblasted to Sa 2.5, following which they are given two coats of paint
• Colour rear view camera with in cab-monitor

Cubic Capacity: 12-17 m3
Body/Hopper Weight: 5800-6300 kg
Body Height: 2048 mm
Width: 2550 mm
Length inclusive of hopper: 5900 - 6900 mm
Loading height: 1400 mm
Packing power: 220 kN (22 ton)
Body floor thickness: 4 mm
Hopper floor thickness: 5 mm

• Footboard in the rear; forward speed is limited to 30 km/h and reverse prevented
• Semi-automatic bin lift
• Hydraulic oil heater
• Autolube
• On-board weighing equipment
• Drop down Sack lift bracket for lifting heavy and bulky items
• Sack carrier and tool boxes
• Hopper ventilation and curtain
