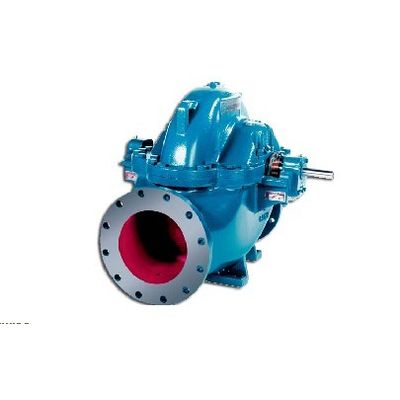

Model KSB Omega Type - Split Casing Pump
Axially split casing. Double suction single-stage impeller, hydraulically and statically balanced. Horizontal or vertical installation. Shaft sealed by gland packing or mechanical seal . Various materials available with cast iron, ductile iron, bronze and stainless steel, or with corrosion proof coating used in wet parts.
-
Most popular related searches
Data Sheet
- Flow: up to 12300m3/h
- Head: up to 200m
- Speed: 1480r/min, 2950r/min (50HZ) 1750r/min, 3540r/min(60HZ)
- Temperature: 105℃max
- Working pressure: 2.5MPa
Application
- Industrial and municipal water supply
- Chilled and condenser water circulating systems
- Water treatment plants
- Fire fighting
- Irrigation and sprinkler pumping stations
