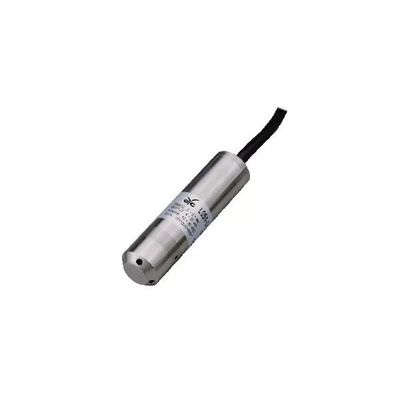

Model L051 -Submersible Pressure Transmitter

• Features:Suitable for water level measurement. Submersible type. Cost effective.
• Sensor type:Piezoresistive diaphragm
• Measuring range:0 ... 10 bar
• Output:4 ... 20 mA
• Accuracy:±0.5% F.S.
• IP rating:IP68

This submersible pressure transmitter is easy to apply in open container and rivers / Plunge the transmitter into the bottom of rivers and you can get level signal of lower limit and upper limit / Drinking water equipment / Pit sinking / Waste water plant / Big container and barrel / Flow current (rivers and lakes).

Input
Sensor type:Piezoresistive diaphragm
Input type:Level
Measuring range:0 ... 10 bar
Cable overload range:

Output
Output:4 … 20 mA
Signal connection:2-wire
Linear accuracy:±0.5% of F.S.
Load resistance:[Ohm] ?(Operating voltage 10V) / 0.02A-0.15Ω x cable length(M)
Response time(ZERO &SPAN)adjustment span:±10% of zero-point and full-scale
Response time:? 5 ms

Environment
Medium:Liquid
Operating temperature:0 ... 50?
Operating humidity:0 ... 100%RH
Storage temperature:-25 ... +60?
Zero-point error:±0.2% F.S. / 10K

Electrical
Power supply:DC 10 ... 30 V
Current consumption:? 21 mA
Overvoltage protection:< DC 33 V
Electrical connection:Specific cable

Installation
Installation:Submersible

Protection
IP rating:IP68
Electrical protection:¦ Polarity protection ¦ Over-voltage ¦ Short circuit

Certification
Certification:CE

Material
Housing:SUS 316
Wetted part:SUS 316
Cable:PVC / PTFE
Weight ( w / o cable ):350 g
