Model LabJack T7 -DAQ Devices

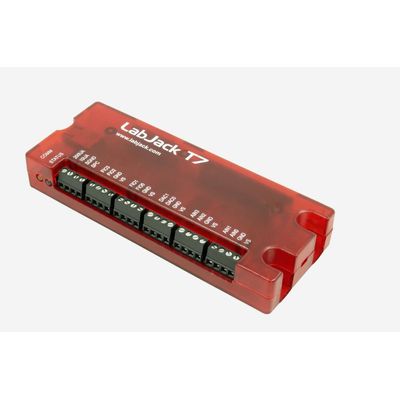

Choose the LabJack T7 for ultimate power and data acquisition flexibility. With 16-bit analog inputs, the option to use USB or Ethernet, and numerous built-in firmware features, the T7 can help you accomplish nearly any DAQ need. The LabJack T7 also has 2 analog outputs (12-bit), 23 digital I/O, and up to 10 digital counters/timers. With 14 instrumentation amplified analog inputs, software selectable gain settings, dozens of digital I/O features, and a Modbus TCP front-end, the T7 is a versatile multifunction DAQ platform. Common applications include laboratory research, industrial control and monitoring, automated testing, and prototype development. Additionally, T7 devices are capable of stand-alone operation by running Lua scripts. Consider the T7-Pro for applications requiring WiFi, a real time clock (RTC), or an auxiliary 24-bit low-speed ADC. For isolated, simultaneous or high speed, 24-bit measurements, consider the LabJack T8.
Most popular related searches
real-time clock (RTC)
load cell
temperature sensor
automatic monitoring
thermocouple
industrial laboratory
integrity monitoring
noise software
Thermocouple sensor
The only DAQ you will likely ever need!
Choose the T7 for ultimate flexibility. With 16-bit analog inputs, the option to use USB or Ethernet, and numerous built-in firmware features, the T7 can help you accomplish nearly any data acquisition need. It`s great for acquiring signals from virtually any kind of sensor.
With instrumentation amplified inputs, software selectable gain settings, dozens of digital I/O features, and a Modbus TCP front-end, the T7 is our most versatile multifunction DAQ platform.
Common applications include laboratory research, industrial control and monitoring, automated testing, and prototype development. Additionally, T7 devices are capable of stand-alone operation by running Lua scripts.
With instrumentation amplified inputs, software selectable gain settings, dozens of digital I/O features, and a Modbus TCP front-end, the T7 is our most versatile multifunction DAQ platform.
Common applications include laboratory research, industrial control and monitoring, automated testing, and prototype development. Additionally, T7 devices are capable of stand-alone operation by running Lua scripts.
- 14 Analog Inputs built in (16-24 Bits Depending on Speed & Device Type)
- Expand to 84 analog inputs with Mux80 add-on
- T7: 16-bit high-speed ADC (up to 100k samples/s)
- T7-Pro: 24-bit low-speed ADC (resolution as low as 1uV noise-free)
- Software Configurable Resolution Settings
- Single-Ended Inputs (14) or Differential Inputs (7)
- Analog input ranges: ±10V, ±1V, ±0.1V and ±0.01V
- All analog input features are software programmable by configuring the Analog Input Registers
- High speed sampling configurable by using Stream Mode. Speeds up to 100kS/s
- Low Latency Sampling and Control (less than 1ms) is made easy with Command-Response Modbus messages
- Easy integration with sensors like thermocouples, load cells, bridges, and more ...
- 2 analog outputs (12-bit, 0-5V)
- Waveform generation via Stream Out
- Integrated LJTick-DAC support for multiple +/-10V outputs
- 23 Digital I/O
- Supports SPI, I2C, and more... (Master Only)
- 5 PWM Outputs with individual phase control
- 5 Pulse Outputs with configurable number, frequency, and width
- 2 Frequency Inputs returning both frequency and period
- 2 Pulse Width Inputs measuring time spent high and low as well as duty cycle
- 2 Line-to-Line Inputs measuring the time between edges on 2 different lines
- 4 High-Speed Counters
- 6 Software Counters with debounce capabilities
- 3 Pairs of Quadrature Inputs
- Many of these DIO Extended Features share pins and cannot be used at the same time. See the DIO Extended Features section of the T7`s datasheet
- 200 µA
- 10 µA
- USB
- Ethernet
- 802.11b/g WiFi (T7-Pro only)
Other Highlights
- Capable of stand-alone operation by running Lua Scripts
- Built-In CJC Temperature Sensor for easy thermocouple temperature readings
- Watchdog system
- Field Upgradable Firmware
- Programmable Startup Defaults
- Industrial temperature range (-40 to +85C)
- For more information please visit the hardware overview section of the T7`s datasheet
Further Reading
More technical specifications about the T7 can be found in Appendix A of the T7`s Datasheet.
Package Contents (Non-OEM)
- T7 (-Pro) unit itself in red enclosure
- USB cable (6 ft / 1.8 m)
- Ethernet Cable (6ft / 1.8m)
- USB 5V power supply
- Screwdriver
- Antenna (T7-Pro only)
- Other package details: No software CD included. Download free software from labjack.com.
- Retail packing (Package) size: 10" x 7" x 3"
- Retail packing (Package) wt: 1.2lb
