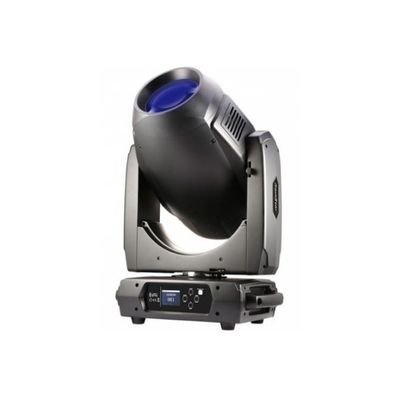

Model LCA045-350 Spot -350W Hybrid Moving Head Light With CMY And CTO

It is exquisite appearance design, using a single 350W white LED light source, white light color temperature 7000K, 5 ° ~ 35 ° linear zoom efficient output 3 in 1 moving head light, long life. CMY + color wheel, a variety of color mixing methods, powerful color mixing function, colorful and soft transition, CTO linear can accurately control the color temperature, a fixed picture disk and a two-way rotating plug-in pattern disk, which is convenient for customers to change the pattern. Adjustable speed 5 prism, adjustable atomization effect. 16bit dimming technology, smooth, smooth and accurate mechanical movement. In addition to DMX control, there is also powerful RDM control and ArtNet network control technology.

• Optics
• LED : 1x350W white light LED, 25,000lm
• Illumination at 5 meters can reach 92,000Lux @ 5 °
• Beam angle: 5-35 ° zoom
• Lens caliber: 150mm
• Life span : 50000H, low power consumption, energy saving and environmental protection
• Scanning
• Pan / tilt operation:
• 16bit fine-tuning
• Smooth and precise positioning
• Pan: 540 ° or 640 °, tilt 270 °
• Adjustable pan and tilt l speed
• The scanning position can be memorized, and it will be reset automatically after no expected operation.
• Pan and tilt with error correction function
• Colour
• CMY + CTO color mixing system
• One color plate, 8 fixed color plates + white light, half-color effect, color plates can be positioned arbitrarily, with two-way rotating rainbow
• Gobo
• One fixed gobo: 11 gobos + white circle, with gobo dithering function
• A rotating gobo: 7 plug-in gobos + white light, with gobo and pattern positioning
• ?  Specification
• 2 DMX channel modes: 25CH / 31CH international standard DMX512 channels
• 3 control modes: DMX512, Artnet, master-slave
• Prism disc: 5 prisms rotating in both directions
• Focusing: electronic focusing, ultra smooth adjustment
• Dimming: 0-100% 16bit dimming
• Frose: 0-100% linear frose
• Zoom: 5-35 ° linear zoom
• Strobe effect :Puls Random?Ramp up Random?Ramp down Random?Random strobe?Strobe Breakeffect, 5s…..1s?Strobe0-20Hz
• Dimming: 0-100% 16bit dimming, which can control the change of light and dark and close light
• Display
• 2.4-inch TFT color display
• High anti-interference four-button touch button
• The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.
• Software
• Software update :Update via DMX link
• Display the lamp usage time, which is convenient for customers to understand the lamp usage in time
• LED refresh frequency: 800Hz / 1200/2000/3600 / 25000hz optional
• 4 kinds of dimming curve:Linear Dimmer?Sqaure Dimmer?.Sqaure Dimmer?S-Curve Dimmer
• Other functions
• Setting and addressing: RDM
• ArtNet control: RJ45 input and output
• Fan cooling (fan changes speed with temperature change)
• LED temperature detection system to protect the life of light
• Power / DMX connection
• Power connection: PowerCON power cable input and output
• DMX XLR socket :3 Pin& 5 Pin XLR socket input and output
• Power
• AC100-240V 50 / 60HZ
• Power consumption : 480W
• Protection class
• Housing  material: ABS plastic fireproof material
• Waterproof level: IP20
• Working environment
• Indoor working temperature: -20 ° C ~ + 40 ° C
• Size and weight
• Packing size: 550x390x785mm
• Net weight: 25.8KG
• Gross weight: 29.5KG
• Certification.  CE,ROHS
