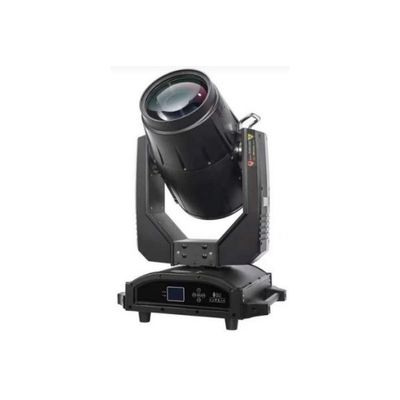

Model LCB005_550BEAM IP -550W Outdoor Beam Moving Head Light
The appearance design is exquisite, the housing adopts full die-cast aluminum alloy, IP55 dynamic rotating computer moving head beam light, using 550W gas discharge lamp as the light source, color temperature 7800K, beam angle 1-2°, linear zoom, High-efficiency output waterproof moving head beam light with long service life. A color wheel, a fixed gobos wheel, 2 independent rotating prisms, two-way rotation can be rotated forwards and backwards to to adjust the frost effect,Pan/Tilt adopts three-phase motors, high-speed, smooth, stable and precise mechanical movement, in addition to DMX control, there is also a powerful RDM control technology.
Most popular related searches
temperature monitoring system
temperature monitoring
waterproofing
indoor environment temperature
structural monitoring system
indoor environment
RoHS
digital temperature controller
RoHS certification
structural monitoring
- Optics
- Light source:Osram 550W lamp (Optional 460W)
- Beam angle : beam mode: 1°~2°
- Scanning
- Pan / tilt operation:
- 16bit fine-tuning
- Smooth and precise positioning
- Pan : 540 °,Tilt 270 °
- Pan/Tilt speed can be ajustable
- The scanning position can be memorized, and it will be reset automatically after no expected operation.
- Pan and tilt with error correction function
- Colour
- Color wheel: 11static colors + Open, the color wheel has half-color effect and continuous forward and reverse of the rainbow effect
- Gobos
- 1 static gobos wheel:17gobos+White circle, pattern jitter effect
- Specification
- 2DMX channel modes: 16/20CH international standard DMX512 channels
- 4 control modes: DMX512, master-slave,sound,auto
- 2 two-way prsim wheels: prism wheel with prism overlap and positioning macro function
- Focus:0-100% linear focusing,
- Dimming:Supports 16 bit dimming of light switch.
- Frost:support
- Strobe effect :1-25Hz strobe, adjustable speed
- Display
- High anti-interference four-button touch button
- Other functions
- Adopt copper tube + fan heat dissipation structure and intelligent temperature monitoring technology, since
- Adjust the heat dissipation system to effectively control the temperature of lamps and lanterns.
- Power / DMX connection
- Power connection:3pin waterproof power cable input and output
- DMX XLR socket:3 Pin waterproof XLR socket input, output
- Power
- AC100-240V 50/60HZ
- Power consumption:800W
- Protective class
- Housing material: full die-cast aluminum alloy,, high temperature resistance, extreme cold resistance, corrosion resistance, aging resistance, UV resistance
- Waterproof level: IP65
- Working environment
- Indoor working temperature:-20°C~+40°C
- Size and weight
- Packing size:690x600x485mm
- Net weight:32KG
- Certification:. CE,ROHS
