Model LifeWindow 9x -Multiparameter Veterinary Monitor

FromDigicare Animal Health

SHARE

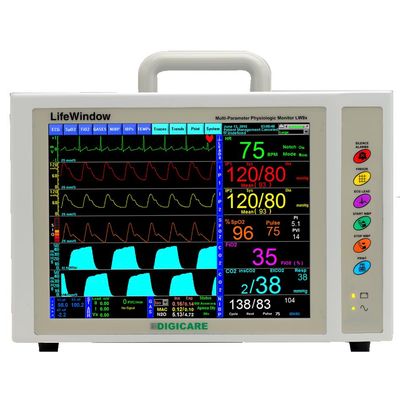

Digicare’s LifeWindow LW9x is a multi-parameter veterinary monitor built with premium measurement modules, to deliver unprecedented reliability. The large 12.1’’ touch screen makes the LifeWindow LW9x very easy to navigate. Using only veterinary specific modules this device measures all patient sizes and species through small and large modes. All vital signs are saved in an MS Excel and PDF spreadsheets that can be easily transferred to any practice management software via networking or a USB drive. All reports and EKGs can be printed either to a standard printer, to a PDF document, or to an optional strip chart printer. The LifeWindow LW9x remote access and control features allow you to view your patient from anywhere at any time so you will never miss a beat.

Most popular related searches

multiparameter monitoring

temperature probe

pressure sensor

pressure monitoring

pressure sensor calibrating

pressure calibrator

temperature calibrator

LifeWindow is built to improve patient outcomes by delivering quick and accurate measurements from critical care to routine checkups on any species. This device is equipped with clinically validated measurement modules that are backed by years of research.

Measurements

Electrocardiography

Digicare’s VetECG™ utilizes an advanced algorithm based on spectrum analysis developed using ECG data acquired from numerous animal recordings. Backed by extensive testing in general practice, universities, and zoos our ECG technology is proven to deliver reliable readings for research and clinical purposes.

Pulse Oximetry

Proven in 150 independent clinical studies, Masimo’s® pulse oximetry has been the leading technology for veterinarians around the world. Accurate SpO2 readings are provided during challenging conditions such as low perfusion, caused by Alpha II agonists and Propophol, and motion.

Capnography

Our capnography solutions provide comprehensive measurements including End-tidal, inspired, and a real time CO2 waveform. Options for mainstream and/or sidestream are available for monitoring your patient’s every breath.

Non-Invasive BP

Obtaining reliable BP measurements from animals can be challenging. Suntech’s® VetBP™ module uses an animal specific algorithm designed with motion tolerant technology. Whether it be a routine check-up or a procedure, the readings will be timely and precise for any species.

Temperature

Digicare’s temperature module is thoroughly calibrated for veterinary patient use. Our temperature probes are constructed of high quality rubber. The rubber’s flexibility allows for easy rectal or esophageal placement. Temperature is included in all models the probe sold separately.

Invasive BP

Patients arterial pressure is measured using specially calibrated pressure sensors passing through a high quality arterial line. These invasive channels can be specifically labeled to reflect up to 2 channels for placement in various locations.

FIO2

Fraction of inspired oxygen is a plug and play measurement that can be added at any time by purchasing the required accessories.

Cardiac Output

Providing essential hemodynamic measurements like cardiac output, stroke volume, right ejection fraction, and a collection of other hemodynamic direct and indirect measurements. All measurements are taken intermittently using the PA catheter and thermodilution technology.

Patient Management

Ability to admit and discharge patients to help manage records

Alarms

Easily access and adjust visual/audible alarms

Waveforms

Display up to 6 waveforms with sweep speeds up to 200mm/s and cascade feature available

Records

Generate Excel and PDF reports that can be printed or exported to your practice management software

Wireless networking allows patient information to easily be transferred or viewed in several applications.

Smartflow

Interfaces with smart flow to show real time vitals on Anesthetic sheet

Remote Viewing

View or control the LifeWindow Lite from any iPhone, Android, or Windows computer

Practice Managment

Transfer AAHA compliant vital signs reports directly to your practice management software
