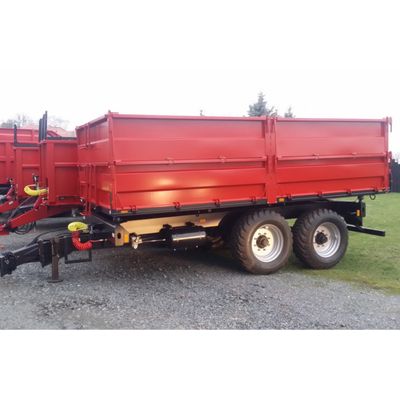

Model LMR-10T -Tractor Hauled Tip Semitrailer
FromNT Grup Ltd.
The tractor-hauled tip semitrailer LMR 10T with 10 (12) t lifting capacity and with 3-way unloading. Hydraulic cylinder and ball-type supports ensure trailer`s rear unloading, as well as left- and right-side unloading. The trailer can be equipped with 60 cm extra body sides to carry lightweight high bulky loads.
Most popular related searches
- Load-carrying capacity (ton): 10-12
- Body capacity (cubic m): 7
- Body capacity with exstension body sides(cubic m): 14
- Mass (kg): 4000
- Maximum speed (km/h): 40
- Overall dimensions, (mm):
- length: 6700
- width: 2480
- height with main body sides: 1950
- height with exstension body sides: 2550
- Inner dimensions of body, (mm):
- length: 4910
- width: 2260
- height with main body sides: 600
- height with exstension body sides: 1205
- Body lifting angle backwards (deg): 50
- Body lifting angle on sides (deg): 45
- Number of cylinders: 1
- Tyre size: 385/65R-22.5
- Track (mm): 1900
- Brakes: 300x60
- Brakes drive: pneumatic or hydraulic
- Drawbar: rigid
- Drawbar support: rigid or jack with adjustable height
- To be attached to tractors with power (kW): 75-95
