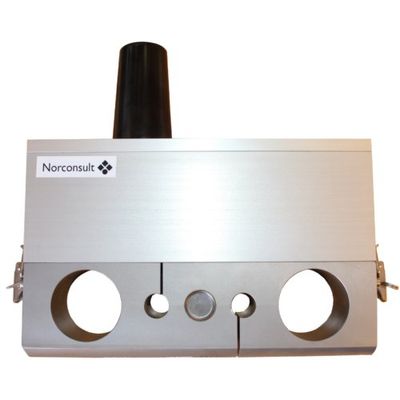

Model LoadTroll -Tension Measuring with Wireless Communication
The LoadTroll is a contained load measurement device used to remotely measure ten-sion in a line. The system consists of tension recorders, an internal datalogger, wireless transmitters and long-life battery supply. It can be used for load monitoring on power lines, bridges and other structures sensitive to high loads. The Loadtroll is easy to in-stall and has battery life of ten years. The communication system provides data to a server in near real-time to provide the client with critical data on demand.
The LoadTroll tension measurement device is suitable for:
- Measurement of ice buildup on power lines
- Harsh environments
- Remote locations
- High accuracy demands
Measuring range: 0 – 200 kN
Maximum safe overload: 150 %
Ultimate overload: 300 %
Resolution: 0.125 % FS
Accuracy: 3 % FS
Sampling Rate: Standard 4 sec, user defined
Data Output: 10 minute average load, std, max and min
Operating temp. range: -40 °C to +50 °C
Battery Life: Up to 10 years
Communication: NB IoT, LTE-M, LTE-4G
Dimensions (L x W x H): 448 x 158 x 169 mm
Weight: 14 kg
