Labocon Systems Limited

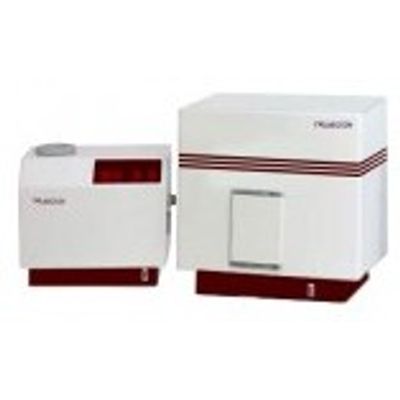

Model LPSA-101 -Particle Size Analyzer
Particle Size Analyzer LPSA-100 Series from Labocon works on the principle of Mie scattering to precisely determine the particle size distribution in a sample. Laser diffraction method can measure the sizes of many particles in a sample very quickly and can provide data on particle size distributions, which is of value to many industries.
Most popular related searches
particle size analyzer
particle sizing
particle size distribution
particle analyzer
laser diffraction method
ultrasonic bath
source sampling
source sampling system
liquid sampling
particle sampling
- Wet sample measure method with He-Ne Laser as light source.
- Sample feeding system of two types: Circulation sample feeding system and Static sample feeding system.
- High, medium and low circulation control options with open or close output valve control.
- Anticorrosive sample feeding system with ultrasonic baths (optional).
- Analysis report includes particle size distribution table and graph, average diameter, median diameter, boundary diameter, specific surface area, etc.
- User friendly computer interface.
Labocon Particle Size Analyzer LPSA-100 Series is used to measure the particle size distribution of powders, suspensions or sprays which can be dispersed in liquids.
- Size Range: 0.2-500 μm
- Detector: 32
- Power Light Source: 0.015-0.003 W
- Wavelength Light Source: 632.8 nm
- Temp. Range: 5°C to 35°C
- Humidity: < 85%
- Static Sample Cell Volume: 13.5 ml
- Volume Sample Circulation Feeder: 660 ml
- Power Sample Circulation Feeder: 150 W
- Dimension Sample Circulation Feeder: 370x200x300 mm
- Overall Dimension: 450x300x450 mm
- Power: 30 W
- Power Supply: 220V, 50Hz
- Catalog No.: 9521123123
