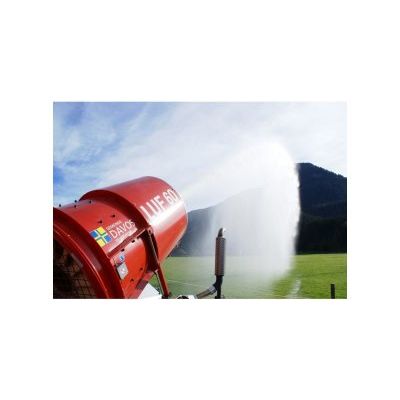

Model LUF 60 -Wireless Remote Controlled Mobile Firefighting Supporting Machine
The LUF 60™, a wireless remote controlled mobile firefighting supporting machine, clears the path for advancement up to a distance of 300 m by incorporating a high capacity positive pressure ventilator and a “water beam” fog. This combination clears away smoke, heat, toxic gases and reduces the intensity of the fire, allowing fire fighters and rescue teams to follow safely. Using state of the art control elements ensure easy handling and high precision operation.
As a high performance machine, it is highly flexible and easy to handle. The very short time it takes for the LUF 60™ to control a tunnel fire reflects in the minimal damage to the tunnel structure itself and its associated infrastructure. The diesel powered LUF 60™ is a rugged machine that can withstand the rigors of severe operating conditions and confines spaces.
The radio-controlled unit has additional back-up manual controls in the event of a power supply failure. High mobility as well as flexibility is guaranteed by a crawler track system, which enable it to go up and down stairways as steep as 30° and is easy capable of “bulldozing” a normal family car out of the way.
Applications in a variety of situations, include, but are not limited to road, rail and subway tunnels, aircraft hangers, chemical, industrial and power plants, warehouses and commercial buildings.
The Mobile Firefighting Supporting Machine LUF 60™ - state of art firefighting apparatus - offers safe working conditions for fire fighters and rescue-teams.
Measurements
Lenght 2.330 (mm)
Width 1.350 (mm)
Height (Headpiece in park position) 2.000 (mm)
Height (Headpiece in upper position) 2.500 (mm)
Self-weight 2.200 (kg)
Performance Data
Diesel Engine John Deere, 140 PS (104 kW), 4 cylinder, inline, water-cooled
Diesel Tank 60 Liter
Hydraulic-oil Tank 80 Liter
Travelling Speed 0—6 km/h
Water Pump 2 stages, 2.400 ltr./min at 10 bar or 1.000 ltr./min at 15 bar, Capacity 100 HP
Water Canon 360 nozzles, 15-20 bar, 0-40° hydraulic operate elevation adjustment
Power Ventilator 35 kW, volume flow 90.000 m³/h, 165 km/h
Water Inlet 3 x B-Storz with non-return valve and pre-filter 6 mm
Water Filter 100 mic, stainless steel
High-Pressure Inductor PN 40
Working Lights 2 pieces (Standard)
Stairway and ramp climbing up to 30°
Remote control The range is about 300 m
