Luna Elektrik Elektronik San. Tic. A.Ş

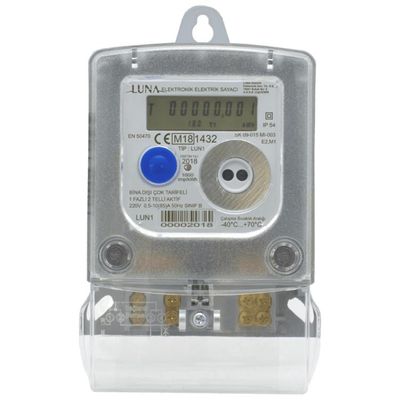

Model LUN1 -Single Phase Active Meter
TYPE: LUN1. Nominal Voltage (AC): 220V. Nominal Current: 10(85)A. Nominal Frequency Hz: 50 Hz ± %2. Minimum Current: 0,25A. Starting Current mA: 40mA. Meter Constant: 1000 imp/kWh.
Most popular related searches
- Connection Type: Direct connected
- Accuracy Class : B
- Mechanical/Electromagnetic Class: M1/E2
- LCD Screen: 5 integers, 3 decimals
- Protection Class: IP54 OUTDOOR
- Relative Humidity: %95
- Operating Temperature Range: -40 °C…+70 °C
- Communication Slot: N/A
- Plug&Play Communication Modules: N/A
- Integrated Communication Modules: N/A
- Latching Relay: N/A
- Magnetic Switch Sensor: N/A
- Battery Life
- Operating: 10 years, shelf: 4 years (min.)
- Dimensions (mm): —-
- Weight—- gr.
