Luna Elektrik Elektronik San. Tic. A.Ş

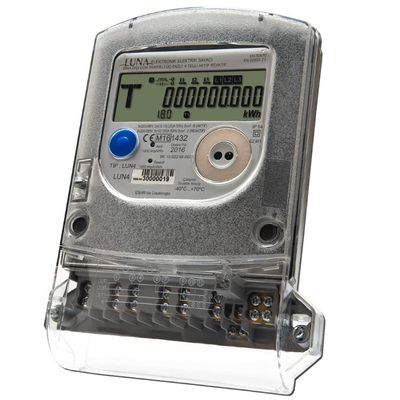

Model LUN4 -Three Phase Active-Reactive Meter
TYPE: LUN4. Nominal Voltage (AC): 3×220/380V. Nominal Current: 10(120)A. Nominal Frequency Hz: 50 Hz ± %2. Minimum Current: 0,5A/0,3A (B/C). Starting Current mA: 40mA. Meter Constant: 1000 imp/kWh, 1000 imp/kVArh. Connection Type: Direct connected.
Most popular related searches
- Accuracy Class : B/C
- Mechanical/Electromagnetic Class: M1/E2
- LCD Screen: 6 integers, 3 decimals
- Protection Class: IP54 OUTDOOR
- Relative Humidity: %95
- Operating Temperature Range: -40 °C…+70 °C
- Communication Slot: N/A
- Plug&Play Communication Modules: N/A
- Integrated Communication Modules: RS485
- Latching Relay: N/A
- Magnetic Switch Sensor: Yes
- Battery Life: Operating: 10 years, shelf: 4 years (min.)
- Dimensions (mm): —-
- Weight—- gr.
