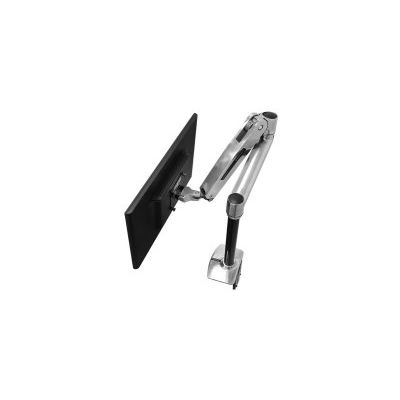

Model LX -Sit-Stand Desk Mount LCD Arm
FromErgotron, Inc.
This versatile arm can be used in a variety of applications: attach a smaller monitor for use within a sit-stand workstation or position a large display up to 25 lbs (11.3 kg) wherever you want it. The LX provides unparalleled range of motion, being able to accommodate a user’s sitting or standing posture. Features include 20 inches (51 cm) of vertical adjustment and 62 inches (157 cm) of side-to-side motion.
Most popular related searches
- 20-inch (51 cm) height range allows users to move between sitting and standing positions while they interact with the display
- Extends LCD up to 33" (84 cm); push your display out of the way when not in use
- Increase viewing comfort—help reduce eye, back and neck strain
- Upgrade LCD monitors and TVs with improved ergonomic adjustment
- Patented CF™ motion technology provides premium ease-of-use adjustment
- Cable management clips on the under side of the arm route and hide cords
- Ideal for space-constrained spaces—folds to within 4.5" (12 cm) of back of desk in storage position
- Secure installation—locking connections between arm, extension and base
- Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
- Part Number: 45-360-026
- Description: LX Sit-Stand Desk Mount LCD Arm (polished aluminum)
- Includes LX sit-stand arm, extension, desk clamp base, grommet-mount base, 48 cm pole, VESA brackets
- Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
- * Weight Capacity: 7 to 25 lbs (3.1 to 11.3 kg). Monitor depth may affect weight capacity
- † Monitor tilts 70° up and 5° down
- ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
- Locking connections between arm, extension and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
- Desk clamp attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick
- Cable management clips on the under side of the arm route and hide cords
- To add an LX Sit-Stand Keyboard Arm to the configuration, order 45-354-026. Attach keyboard arm at base of pole while leaving the arm’s wall-mount base unused
- NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
- Product Weight: 19.5 lbs (8.9 kg)
- Shipping Dimensions: 25" x 14.75" x 7.5" (64 x 38 x 19 cm)
- Shipping Weight: 22 lbs (10 kg)
- Warranty: Ten (10) years
