Model M/1 -Low Voltage Holiday Detector

FromTinker & Rasor

SHARE

The Model M/1 Holiday Detector is a highly sensitive device designed to locate holidays. (pin holes, voids, etc.) in thin film protective coating of relatively high electrical resistance when such films are applied to the surface of material of low electrical resistance. In these applications, such as painted metal surfaces, the Model M/1 Holiday Detector will locate these points very accurately with an audible signal. This method of inspection of thin film is a non-destructive test and will not injure the protective coating.

Most popular related searches

thin film coating

non-destructive testing

protective coating

concrete coating

67.5v DC output
Audible running tone
Audible & Visual holiday detecting indicators
80kΩ - 90KΩ resistance
On-board calibration verification
Below battery check
Headphone jack
Form fitting belt unit
Battery operated (6 AA ) (A/C version available 115v / 240v)

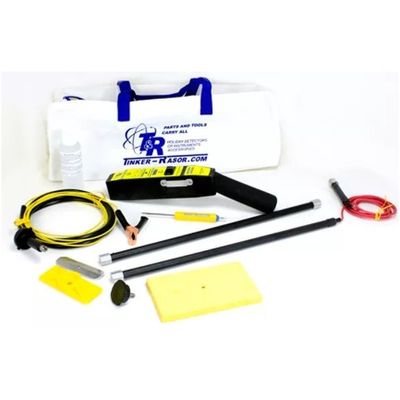

Included with the M-1:

Instrument with batteries
15’ Ground Cable
18" wand with 6` cable
Sponge electrode 2" x 7" x 1" (Ships Compressed)
4 oz. Bottle of "water wetter"
(6) AA batteries included

Applications:

Use on thin film coatings on conductive substrates such as tanks, concrete, etc.

Recommendations:

Conforms to standards for low voltage holiday detectors, such as NACE International RP0188

Calibration:

Recommended Annually

Specifications:

67.5v D.C. Output

80 ohm. Resistance for coating on metal

90 ohm. Resistance for coating on concrete

(Factory setting is 80 ohm. See Instructions for information on changing setting to 90 ohm.)

Dimensions:

5` x 4` x 2` Case. 1 lbs. (127mm x 101mm x 50.8mm, 45kg)-Instrument in case

20" x 5.5" x 4", 3 lbs. (508mm x 139.7mm x 101.6mm, 1.35kg)-Shipping
