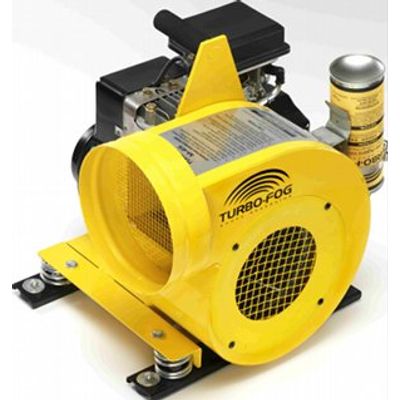

Model M-45 -Thermal Aerosol Smoke Generator
Patented in 1977, Turbo-Fog® was the “original” thermal smoke generator and has been blowing smoke for over 30 years. Turbo-Fog® M-45 is a versatile, lightweight, portable, self-contained smoke generator capable of producing dense, voluminous white smoke, using our leak proof liquid smoke cartridges. Each cartridge may be replaced in seconds, allowing quick and easy replacement, even while the unit is operating, allowing for continuous, uninterrupted smoke production. Designed to be efficient, the Turbo- Fog® M-45 does not use smoke bombs or garden sprayers. Turbo-Fog® M-45 Briggs & Stratton powered turbine-type blower is lightweight (45 lbs.), creates hurricane force velocity with a discharge velocity of over 75 MPH and 2,000 CFM. Turbo-Fog® M-45 continues to work under pressure (5.75 ½ water) to find even the smallest problems. Our white smoke-agent cartridges are available in a 24-fluid ounce capacity with a 4-year shelf life.
- Produces Continuous Dense Smoke
- Powerful, hardworking engine
- Versatile – Lightweight – Compact
- Portable – Hand-Carryable – One Person Operable
- Self-Contained
- Smoke Cartridges May be Replaced in Seconds
- Smoke Cartridges Create Safe, Clean, Non-Irritating Smoke
- Produces Continuous Dense Smoke
- Versatile – Lightweight – Compact
- Portable – Hand-Carryable – One Person Operable
- Self-Contained
- Smoke Cartridges May be Replaced in Seconds
- Smoke Cartridges Create Safe, Clean, Non-Irritating Smoke
- Blower Air-Volume Capacity – 2,000 CFM
- Static Pressure – 5.5″ (Water)
- Smoke Volume Capacity (Adjustable) – 0 to 175,000 + CFM
- Smoke Discharge Velocity – 6,6000 FPM (75 MPH)
- Smoke Particle Size – 0.5 to 50 Microns
- Smoke-Agent Cartridge Size – 24 Fluid Ounce Capacity
- Fuel Tank Capacity – 2 Quarts (2 hours)
- Dimensions L x W x H (inches) 19 x 17 x 18
- Weight – 45 lbs.
- Range – 500 + Feet
- Engine – Briggs & Stratton Industrial-Type, Ordnance Qualified. One-cylinder, 4-cycle, air-cooled, “Kool-Bore” cylinder for Long-Life and Trouble-free performance. One-Year Briggs & Stratton Engine Warranty.
